10 OUTPUT WASH CARDS

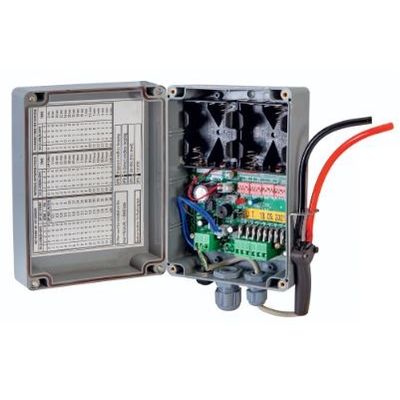

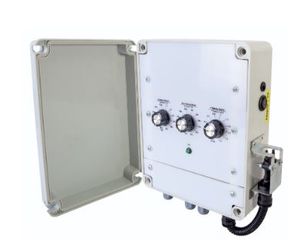

This automation board is designed to automatically clean filtration systems in agricultural irrigation that use more than three filters. It is suitable for systems with up to 10 filters. The board operates with a timer and can also function based on pressure differences. Its control knobs provide a clearer and easier user experience. The board reads data from the system every 10 seconds, ensuring safer operation. When the device detects a pressure difference, it starts cleaning the filters. This allows for more efficient and longer-lasting filtration systems. Powering the board can be done with 4 medium-sized batteries or a 12V DC adapter, providing ease of use to meet the needs of every user.

PANEL DESCRIPTION:

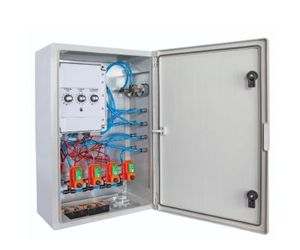

The filter automation panel is manufactured according to the desired number of filters, ranging from a minimum of 2 to a maximum of 10. Each solenoid on the panel controls a backwash valve. Based on the signal received, each valve flushes the filler it is connected to in sequence. Manual flushing is possible without waiting for the set time. Manual flushing can be performed manually on the control board or at desired intervals using the on/off switch on each valve`s solenoid. The panel includes pneumatic nipples ready to receive inlet and outlet pressures, as well as high and low pressure signals. When installing the filtration system, the necessary hoses are connected to the pneumatic nipples on the panel. After installing the batteries or connecting the adapter, the desired settings can be made. The cover should be carefully closed and contact with water should be avoided
