Model F500 M - Filter Presses

Model F500 M -Filter Presses

FromFiltri Fazzini s.r.l.

SHARE

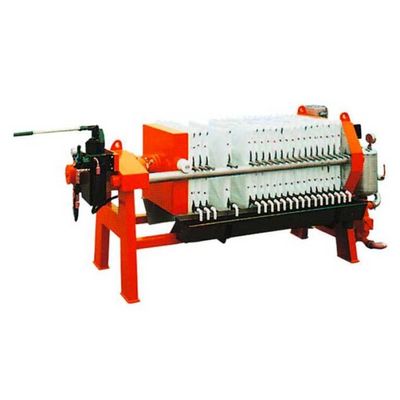

The F500 filter press is the smallest of the series with manual movement of the plates and is built in three versions.

Most popular related searches

hydraulic control system

polypropylene filter

tipping container

The main parts of the F500 model are:
Electro-welded bearing frame in carbon steel with stainless steel coatings, treated with anti-acid rust, sandblasting and two layers of special epoxy paint
Hydraulic control unit for closing and opening the filter, applied to the frame
Sludge feeding group, generally composed of a piston pump type S60 to ensure constant filling of the filter and the max. Operating pressure. 15 bar
Electric panel that manages the general command of the filter
Lateral grid panels for operator protection
Filter plates 500x500 mm. in polypropylene
Series of polypropylene filter cloths

Electric plant at the end of the filtration cycle
Self-tipping container for the collection of cakes
Raised metal structure
Displacement wheels
