Flocell - Filters

SHARE
Flocell Filters are innovative filtration solutions designed for rapid deployment and optimal performance in various industrial applications, including aquaculture and wastewater management. These filters feature millions of carrier elements acting as micro lamella separators, slowing water velocity and trapping minute particles within media voids to enhance filtration efficiency. The integrated Air Clean Technology eliminates the need for traditional backwash cycles, using air to maintain filter cleanliness. The XFM Fines Media within the filters has been meticulously engineered to maximize mechanical filtration, ensuring superior performance. The system's effectiveness is validated by independent testing from renowned institutions such as IFTS and Cranfield University. Available for short-term rentals, these units offer a practical solution for emergency filtration needs or during maintenance periods of existing systems, capable of being operational within 30 minutes of deployment. The rental agreement requires a minimum commitment of 60 days.
Most popular related searches
air cleaning system
clean air system
air cleaning
clean technology
lamella separation
clean air
lamella separator
wastewater management
advanced filtration
backwash

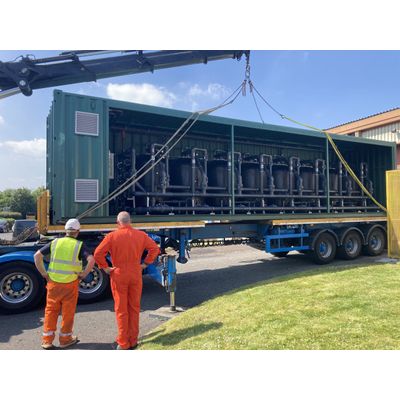

Flocell have a number of XFM Filters available on short notice for both duty and standby roles where necessary. These units come with flanged connectors and integral blowers so they can be rapidly deployed to site and brought online in as little as 30 minutes.
Typical roles would be to provide short-term filtration whilst other units are undergoing maintenance or additional capacity in emergency roles such as stormwater overflows.
Rental units are subject to a 60-day minimum rental period.


  • Simple operation by single operative
  • Virtually maintenance-free
  • Produces an easy to manage, concentrated sludge
  • Able to capture very small particles down to <5μm
  • Ability to manage wide size spread of soft particles from 1μm to 2 mm
  • Long operating times between cleaning cycles
  • Retention capacity can be circa 1 ton solids per unit
  • Air Clean Technology minimises water wastage
  • Low energy use


Effective & Sustainable
Filtration Systems

Millions of carrier elements work as small lamella separators reducing water velocity and allowing for the smallest particles to settle out into the media voids.Millions of carrier elements work as small lamella separators reducing water velocity and allowing for the smallest particles to settle out into the media voids.



Air Clean Technology

Flocell filters with Air Clean Technology use air to clean rather than a traditional backwash cycle. Flocell filters with Air Clean Technology use air to clean rather than a traditional backwash cycle.



XFM Media

Flocell XFM Fines Media has been specifically engineered to optimise the mechanical filtration performance of Flocell XFM Fines Filters.Flocell XFM Fines Media has been specifically engineered to optimise the mechanical filtration performance of Flocell XFM Fines Filters.



Independently Tested

Flocell open cell media has been independently tested by the IFTS (Institut de la Filtration et des Technique Séparatives) in France and Cranfield University. Flocell open cell media has been independently tested by the IFTS (Institut de la Filtration et des Technique Séparatives) in France and Cranfield University.
