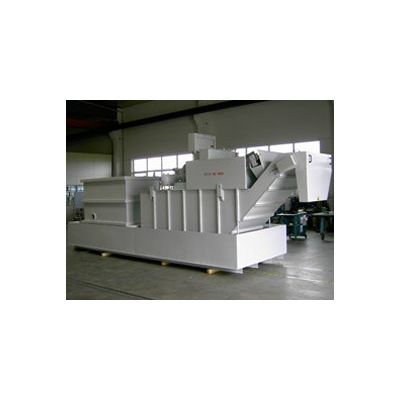

Model VC 400 -Filtration
Filtration without the use of filtration adjuvants, Fully automated discharge of swarf and grinding sludge, Low residual moisture in the filter cake, Filter band cleaning device made of stainless steel, Filter pore size ›50 µm
Housing
Welded structure from 3 mm steel sheet
Outside and interior lacquer finish two-way 2-K-lacquer (NCS-S 2010-R70B)
Switch cabinet
Electrical equipment for automatic operation.
With SPS-Control S7 / 200, TD 200
Filter belt
Alternatively 40/80/120 μm in high-grade steel
Documentation
Operating manual, wiring diagram

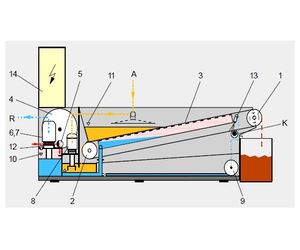

1. driving roller
2. deflection roller
3. filter belt
4. vacuum pump
5. reversing valve
6.7. recirculating pump
8. sludge pump
9. HP-pump
10. float switch
11/12. Overfill Safety Device
13. Rinsing nozzle
A Supply
R Runback - Cleaned medium
The MKR stationary vacuum band-pass filtration technique effectively eliminates solid particles (e.g. aluminum swarf, cast iron and grinding sludge) from water-miscible coolants and cutting oils.
Functional principle of the vacuum belt filters
MKR Vacuum belt filters are for the permanent cleaning of the liquid. The filter transibility is 40 - 80 µm depending on the structure of the of the filter cake. The vacuum belt filter consists of a circulating belt filter, which is cleaned by high-pressure nozzles after every cycle. The vacuum belt filter works fully automatic. The sludge is removed from the plant in a nerly dry condition.
