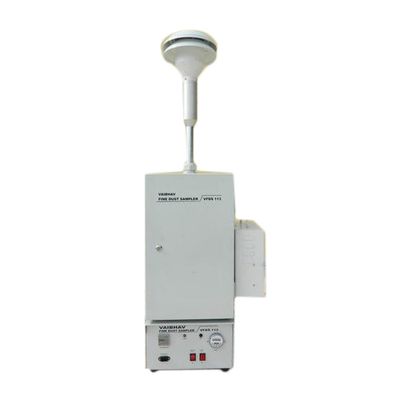

Model VFDS 113 -Fine Dust Sampler
SPECIAL FEATURES: Design and Developed as per US EPA published standard designs. Meets the requirement of Pollution Control Board for Fine Dust Sampling. Accurate Particulate Sample Collection of PM 2.5 / PM10. User friendly & having low operating cost. Compact, Portable, Easy to Operate & Handle. Arrangement for Parallel Gaseous Sample Collection. Filter holders fitting in the sampler are done such so that these are remain suspended in air & thus not affected by heat of motor fitted in lower cabinet of the sampler. Maintenance free Suction assembly, No maintenance required. Design to runs continuously more than 24 hours or more at constant flow rate of 1m3/hour, this lower rate reduce filter chocking even in area of high FPM Level. Suitable for Outdoor Use, Corrosion free lockable housing for wins impactor and filter holder. Filter Holder is design to accept any standard 47mm diameter filter. Same instrument can used for PM10 and PM2.5 Sampling.
Condition: New
Power Source: 230 VAC 50 Hz
Features: Durable, Eco Friwndly, Fast Cleaning, Fine Finished, Precise Design
Warranty: 14 MONTHS
Display: Ananlog
Flow Rate: Constant 1m3/hour (16.7 LPM) unaffected by voltage fluctuation and filter chocking through critical orifice
Automation Grade: Manual
Brand Name: VAIBHAV
Usage: PM2.5 (FPM), PM10(RSPM) & Gaseous Pollutant Sampling
Production Capacity: 200 SET FOR THE YEAR
Weight ( in kg): APPROXIMATE 27 KG
Color: WHITE
Brand: VAIBHAV EQUIPMENT SERVICE
Material: AUMINIMUM
Airflow: 1 M3/HSR - 16.67LPM
Energy Consumption: SINGLE PHASE , 220V AVC, 2 AMP,
PM 2.5 Size Separator: Two stage Impactor confirm to US EPA design, Omni directional air inlet with PM 10 separation through an impactor followed by PM 2.5 separation through WINS impactor
Filter Media: 47 mm diameter Filter in a Filter Cassette housed in each stream of filter holder assembly.
Flow Meter: Dry Gas Meter record the total air volume sampler with a accuracy of 200 ML
Clock / Timer System: Programmable Real Time control system with control of automatic start & stop of instrument
Dimension & Weight: 300mm X 280mm X 800mm, Approximate 25 Kg
Power Requirement: Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
Operation: Up-to 28 hours continuously
Time totalizer: 0 to 9999.99 hours recorded on a digital time totalizer
Vacuum Pump: Oil free non pulsating pump driven by induction motor for stable flow rate
WARRANTY: ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY
Product Code: VFDS-113
Port: EX WORK AHMEDABAD
Payment Terms: L/C, D/P, T/T
Delivery Time: READY STOCK
Packaging Details: STANDARD PACKING IN PLASTIC COATED HARD BOARD WITH INSIDE ARMOR SHEET PROTECTION AND BUBBLE ROLL LAYER ON INSTRUMENT
