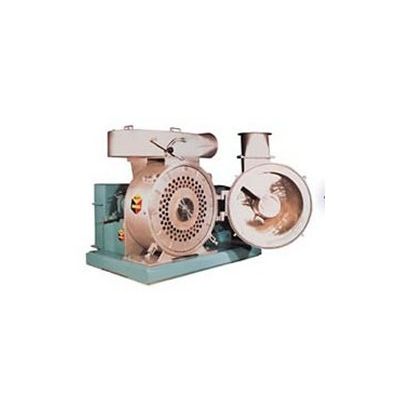

Model ASM -Fine Grinder
The Scott Air Swept Mill (A.S.M.) is designed to grind a wide variety of products. Our fine grinder machine is capable of producing particle sizes from 500 microns down to 15 microns. Some products can be ground to as small as -10 microns. The entire grinding mill consists of several components including a feeding system, the A.S.M. fine grinder and a collection system. In some applications, an air heating system can be added to accomplish drying and grinding in a single process.
Most popular related searches
fine grinder
negative air pressure
digital temperature controller
particle sizing
grinding mill
lubricant system
size reduction
negative air
dry grinding
negative pressure air
- Grind from 500 to 15 microns (some materials to 2 microns)
- Cooling and drying occurrence during grinding
- Recirculating lubrication system to ensure long bearing life
- Quick opening door for rotor and liner part replacement
- Grinding surface for a variety of dry or wet materials
- Temperatures controlled by auxiliary chilling or heating equipment
- Low capital cost with high return on investment
- Negative air pressure results in cleaner and safer production conditions
- Effective design delivers exceptional ratio of product yield to power consumption, processing time and related production costs
- Easy clean out design
- Product output variables - speed of mill, number of beater plates and air flow speed
- Effective impact surface and increased time attains a consistently fine end product
- A variety of drive assembly designs are available including shaft mount, gear head or direct drive. All drive assemblies are at least AGMA Class II rating
- Custom manufactured in mild or stainless steel
- Sanitary finishes up to and including 3A Dairy Standard
