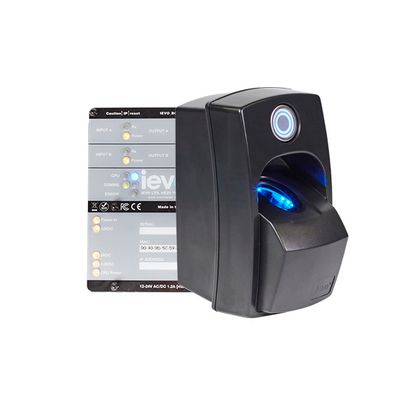

ievo - Model ultimate -Fingerprint Scanner

With advanced encryption for data transmission, the ultimate fingerprint reader provides a highly accurate and quality image to reliably allow the ievo Control Board to perform 1:N matching of up to 50,000 (10,000 as standard) fingerprint templates. The reader unit itself does not store any user data for an additional level of protection.

Featuring an IP65 rating and built-in environmental controls, the ultimate reader is designed for external deployment and remains operational over time in harsh weather conditions.

Supporting proximity detection and clear LED and audio indications, the reader offers simplicity along with convenience to the user.

IP65 RATED
The ultimate fingerprint reader is IP (Ingress Protection) rated to industry standard 65:

• Totally protected against dust ingress.
• Protected against low-pressure water jets from any direction. Limited ingress permitted.

With this rating, the ultimate is ideal for external and internal installations and harsh environment use.

TACKLING SKIN DEBRIS
Utilising the advanced multispectral imaging sensor to enable a fingerprint image to be obtained even when some levels of dust, dirt, oils, creams or cosmetics are present on the skin; and also through some types of latex gloves. The ultimate provides a robust solution to work for you.

LIVENESS DETECTION
Certified for Government use in the UK by the Centre for the Protection of National Infrastructure (CPNI) the ievo ultimate provides resistance to fake and spoof fingerprint attacks by using the industry’s best liveness detection sensor to capture detailed data from the surface and subsurface levels of a fingerprint.

FLEXIBLE INTEGRATION
ievo readers have been designed to assimilate with a large number of security systems via existing protocols. The system can be integrated into a host of access control systems and other security products for true flexibility.

The ievo ultimate uses multispectral imaging (MSI) technology to capture a highly accurate reading of a fingerprint. Scanning both surface and subsurface levels of the skin simultaneously, up to a depth of 4mm, this method uses multiple polarised and non-polarised lights to register between 1-100 reference points to build a true digital image (the average number of reference points for a good image is 40). The MSI process allows the reader to operate through a variety of most skin or environmental conditions that may otherwise hinder an accurate reading.

• 1:N matching up to 50,000 fingerprint templates via the ievo Control Board (10,000 as standard)
• Designed for external and internal use
• IP65 rated for harsh environmental deployment
• Multispectral imaging sensor
• Data transmission AES (128bit) encryption can be enabled
• Secure template storage on a separate ievo Control Board
• Communicates with ievo Control Board
• Activated by capacitive proximity detection
• LED and audio indications
• Anti-tamper and vandal resistant
• Seamless integration with large number of existing access control systems
• Built-in environmental controls; heater and humidity sensor for external use
• Spoof detection functionality can be enabled (ISO PAD Level 1 compliant)
• Approved for UK Government use by the CPNI

CPU: ARM
Connection: Shielded (S-FTP) Cat5e/6 cable
Voltage: 12V (supplied from the ievo Control Board)
Current Draw: 600mA
Communication: RS-422 (1Mbit/s)
Controller: ievo Control Board
Operating Temperature: -20~70ºC
Power Indicator: Full Colour LED
IP Rating: IP65
Certifications: CE, FCC, CPNI
Dimensions:
Surface:
Width: 93mm
Height: 128mm
Depth: 93mm:
Flush:
Width: 119mm
Height: 153mm
D/recessed: 47mm
D/visible: 45.5mm
ISO: ISO PAD Level 1 compliant when spoof detection is enabled
