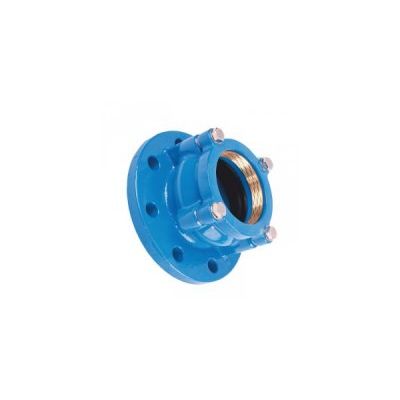

Model 50-250 -Flange Adaptor

SHARE

Flange Adaptor  for connecting PE pipes acc. to DIN 8074 and PVC pipes acc. to DIN 8061/8062 to PN16 (PVC as from DA200 restrained up to PN10). Valves and fittings with flange connection acc. to DIN EN 1092-2, PN10/16. Installation without special tools. Installation independent on weather conditions. Maintenance freeFor thin-walled PE/PVC pipes (up to 3 mm wall thickness) and negative pressure pipes the use of a supporting sleeve is mandatory

Most popular related searches
flange adaptor
PVC pipe
drinking water supply
PE pipe
fusion bonded epoxy coating
pressure pipe
corrosion protection
drinking water
water supply
PVC drinking water pipe
  • Body and pressure ring made of ductile cast iron EN-GJS-400-15 (GGG40)
  • Lip seal made of EPDM with plastic stabilisation
  • Clamping ring made of brass with special profiling
  • Connecting bolts made of stainless steel A2 with plastic bushes as spacers and to protect the thread
  • Materials approved in accordance with KTW and DVGW W270
  • Corrosion protection by means of fusion bonded epoxy powder coating blue, RAL 5015 (average dry film thickness 250μm)
  • Restrained connection of PE/PVC pipes
  • Drinking water supply
  • Agricultural field sprinkler system
