Hawle Beteiligungsgesellschaft m.b.H.

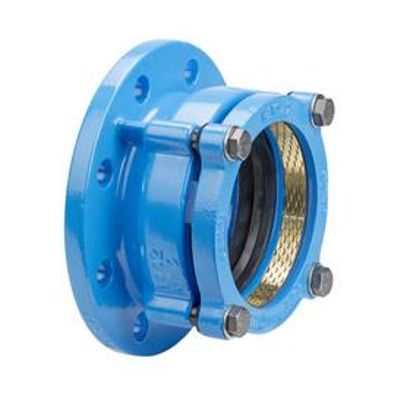

Hawle - Model 2000 -0400 -Flange System
System 2000 Flange for PE and PVC pipes.
Most popular related searches
- Using a lip seal ring for sealing the pipe allows for easier insertion of the pipe into the System 2000 socket
- The pipe restraining system is required for pushing the pipe into the seal and chamfer with an appropriate tool
- For PE pipes with thin walls (≥ SDR 21) and low internal pressure we recommend using a support liner
- Suitable for PE pipes 80/100, EN 12201, DIN 8074
- For PVC pipes according to EN ISO 1452-2
- Flange sized according to EN 1092-2, drilled according to EN 1092-2 | PN 10 standard; EN 1092-2 | PN 16 DN 200 to DN 600 please specify on order - other standards on request With integrated flange seal made of elastomer
