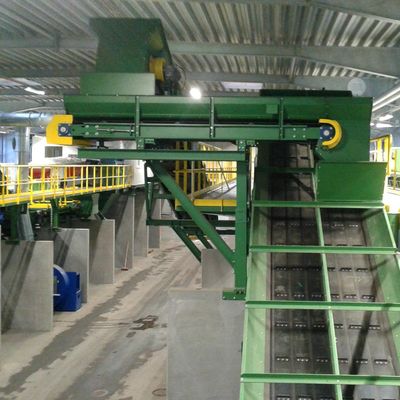

Marcovil - Model MTL -Flat Conveyors

SHARE

Robust equipment, within the range of heavy-duty equipment. With flat transport station, ideal for transporting goods of different sizes. Suitable to be integrated into existing lines in order to automatize the entire production line.

Most popular related searches
safety system
resistivity profiling
transmission data
screening system
product safety
  • Transmission: Attrition on rolls
  • Structure: High resistance profile developed by MARCOVIL
  • Driving Drum Ø: 239 mm | Includes 10 mm thick rubber coating
    Bearings UCF 213.
    Anti-skidding system, auto-centering of the screen and conical shaft fixation
  • Free Drum Ø: 219 mm | Bearings UCF 213
    Anti-skidding system, auto-centering of the screen and conical shaft fixation
  • Screens: Anti Oil, Anti Abrasion, according to the material
  • Top Rolls Ø: Multiple measures and distances according to the chosen solution
  • Lower Rolls Ø: Multiple measures and distances according to the chosen solution
  • Screen width: 600 mm up to 2.000 mm standard
    [Note: on some models, it is necessary to adapt the minimum and maximum width as indicated]
  • Maximum slope | Standard: 30º
  • Screen speed | Standard: Up to 1 m/s

  • Safety Devices: Included
