Qiusuo - Flat Wedge Wire Screen Panels

SHARE

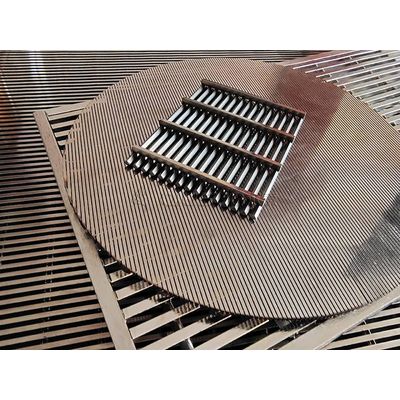

Super Flat Wedge Wire Screen Panels For Widely Applications. We are making high quality flat wedge wire screen panels into round, square, rectangular and any other shapes according to drawings. Our Super Flat Wedge Wire Screen Panels are used in a wide range of architectural situations such as floor grates, building wall cladding, stairs, room partition. And it also ideal material to solve the problems of solid / liquid and solid / gas separation, for industrial filtering, sieving, mining. The detailed specification of gap opening, profile wire and support rod can be supplied as special application.
Most popular related searches
wedge wire screen panels
wedge wire screen panel
flat wedge wire screen
wedge wire screen
flat wedge wire
wedge wire flat panel screen
wedge wire panel
wedge wire flat screen
solid-liquid separator
solid-liquid separation
  • Material: stainless steel.
  • Surface profile type: triangle wire.
  • Support profile type: round bar, rectangular bar, wedge wire, triangle wire.
  • Slot size: 0.05 mm - 10 mm.
  • Pitch: 10 mm - 35 mm.
  • Panel width: 500 mm - 2000 mm.
  • Panel length: 500 mm - 3000 mm.
  1. The screen surface USES V-shaped screen, screen surface is not easy to block, high production efficiency.
  2. The screen surface is flat, no edges and corners, burr, easy to flow materials.
  3. Size of screen joint, small error, quality of screening, dehydration and desorption.
  4. The screen plate are selected stainless steel, chemical stability, corrosion and rust resistance, product service life.
  5. Accurate distance between supporting profile, excellent filtering performance.
  6. Welded production process for solid and strong structure. High strength, high load capacity.
  • Solid-liquid separation
    The V wire screen panels is solid-liquid separator adopts wedge-shaped technology, which is not easy to block, easy to backwash and corrosion-resistant. The products are widely used in spiral extruders, dry and wet separators, solid-liquid separators and so on in pig farms, cattle factories and other breeding bases.
  • Gas-solid separation
    V wire screens used for Drilling for oil, gas and Wells, well known for great strength, long service life and a high level of adaptability
  • Architectural wall cladding, fence, gates
  • Malting machine: suitable for malting mill, gum and drying furnace. It has the advantages of high ventilation efficiency and good heat dissipation.
  • Beer machinery: suitable for use in the filter tank of brewery, with high porosity, long service life and other advantages.
  • Mining machinery: used for desliming and dewatering of coal preparation plant.
  • Environmental protection: used for filling oil, gas and well with sand, it can produce sand to protect underground and surface equipment. It has the advantages of high opening rate, large filtering area and fast filtering speed.
  • Chemical industry and others: used for sugar growth, paper mill sewage treatment; Filter, dehydrate and use all kinds of paint baking room in the chemical fertilizer plant; Starch filtration in food factories; Used for the ventilation of grain storage.
