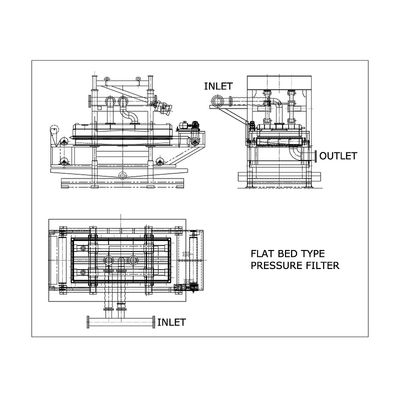

Flatbed Pressure Filtration System
The flatbed pressure filtration system is a type of pressure filter where a suspended solid such as a precipitate is separated from the liquid by straining it – under pressure – through a porous medium that can be penetrated easily by liquid. The device is used for filtering grinding/ honing/ super finishing coolant from a group of machines where the contaminants are in powdery/ particulate form. The flatbed pressure filtration system is a highly evolved form of the paper band filtration system. It utilizes a lower footprint to achieve the same flow rate of filtered coolant output. It also considerably lowers filtration medium consumption.
The contaminated coolant from a group of machines is typically collected from each machine in underground coolant trenches, and flows by gravity to the flatbed pressure centralized filtration system. The contaminated coolant is fed through a filter medium under positive pressure. This is achieved by a transfer pump through the top shell of the system and this flow is controlled by an actuated valve. The contaminated coolant is discharged onto a diffuser, to endure its flow onto the filter medium. The contaminants in the coolant are blocked by the filter medium to form a contaminant cake. The clean coolant flows past the medium into the clean coolant chamber present below the filtration medium.
- Lower footprint requirements
- Reduce the filtration medium consumption per unit weight of dirt removed
- Back washable nylon and SS mesh can be used to reduce consumables
- Fully automated PLC
- Filter media can be changed
- Can use with pre-coat media for very fine filtration level
- Steel grinding
- Cast iron grinding
- Honing
