Danatronics - Model ECHO FD -Flaw Detectors

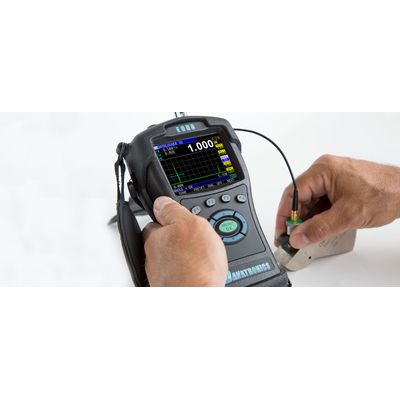

ECHO FD is our portable ultrasonic flaw detector in the same field-proven case as our popular ECHO series. Our ECHO FD represents a breakthrough in terms of cost, size and ease of use for your everyday flaw detector. ECHO FD can even toggle from a flaw detector, corrosion or precision thickness gage making it the smallest and most affordable unit in the world to offer such a vast application set. Our new hand-held ultrasonic flaw detector is packed with many useful and practical features including:

Models

ECHO FD is available in 4 models
ECHO FD

ECHO 9FD

ECHO 8FD

• 3.5” sunlight readable display with color pallet
• Change color and vibrate on alarm
• 2 independent gates
• DAC
• AWS
• Peak Memory
• 2 gb expandable to 32gb of micro sd card memory
• Datalogger including b-scan and export of reading to excel
• 13 hour battery life
• Custom rubber boot with padded wrist strap and bail
• Made and designed in USA

• Display: 3.5” TFT, 320 x 240 pixels (¼ VGA) sunlight readable color display with display update rate of 60 Hz. Under all test conditions
• Backlight: Light Emitting Diode (LED) backlight. Includes variable light intensity.
• Package: Designed for IP67 rating, custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing
• Operating Temperature: -4 to 122F (-20 to 50C)
• Transducer Connectors: Lemo 00
• Bandwidth: .5-30 Mhz (-3dB)
• Pulser: Tunable Square Wave (1-25 MHz), Spike
• Mode: Pulse-echo, dual, thru
• Measurement rate: 60 Hz
• Pulser Voltage: 30, 60, 90 120V
• Range: .400” full scale to 23 inches for steel velocity
• Zoom: zooms gate 1 width to minimum range capability
• Delay: 0-23” (23” minus the range)
• Zero Offset: 0-5000 µsec.
• Vel: .025 in/usec-.6 and metric equivalent
• Weight: 1.15 lbs with internal rechargable batteries
• Battery life: 13 Hrs.
• Battery Type: 3.7V li Ion and alkaline tray option.
• Charger: 5V, 2 amp output, 100-240 VAC, 50-60 Hz input
• Rubber Boot: custom Boot to protect the unit with chest harnesses, padded strap with built in stand.
• Gain: 0-90db in .1db increments
• Linearity: Per ASTM E317-15 (1% on vertical axis, .5% on horizontal axis.
• USB 2.0: 2-way communication, acts as input for battery re-charge
• Alarm: dynamic change of color and vibrate on alarm for echo in gate, echo above DAC positive or negative gate and minimum depth alarm
• Datalogger: 2Gb std, expandable to 32GB of removeable micro sd card memory: file types linear, 2D 2D with custom point, 3D 3D with custom point, boiler with and without waveform storage options.32 character file name and 20 character longer i.d. strings.
• Stored Setups: storage and recall of 2700 calibration and set-up files.
• Data XL: Interface program to send and receive files to and from PC. Displays thickness with ID in Microsoft Excel
• Memory: internal and micro sd card, 2 GB standard upgradeable to 32GB
• Peak Hold: Holds peak of all echoes including for setting up DAC in Outline waveform, hold curve of echo envelope with live echo below which is ideal for flaw sizing (-6db drop technique (API 5UE)), RF peak hold as well. Peak on, peak hold and Peak off.
• Freeze: Freezes for data storage and waveform viewing analysis.
• Waveform Filled or outline
• Gates: 2 independent gates, adjustable gate start, width, level and alarm type (positive, negative, minimum depth). Can be set to peak or edge detection for each gate.
• Zoom: Zooms gate width 10 times to minimum range capability
• Auto Cal: 2 point calibration, cal zero and cal velocity of thin and thick
• Display special funcitons: 5 display modes for varying A-scan size plus A and B scan simultaneously
• Rectifcation: RF, Full Wave, Half +, Half –, RF
• Units: Inches, MM or µsec
• Languages: English, French, German, Spanish, Italian, Russian, Czeck, Finnish, Chinese, Japanese, Portuguese, German, Slovak, Swedish, and Hungarian.
• Angle Beam: display all three leg components, which leg you are in visually, angular distance, surface distance and depth accounting for leg correction.. auto beam index peak pitch where audible beep indicates when the peak of the signal is reached, x-value to correct for beam index point of wedge.
• Angle: 0-90 degrees in 1 degree increments including 0,30, 45, 60, 70 and 90 as pre-set choices.
• Reject: 0-85% FSH, completely linear with vertical indication bar
• Measurement Types, single, dual, thru transmission, angle beam, delay lines, contact, immersion, echo to echo, dry couple
• Bluetooth: Optional
• Standard Inclusions: Echo FX including 2 GB SD card, li Ion battery, battery charger, transport case, manual with Data XL, USB cable, DAC, AWS software, 2 gates, Echo to Echo, B-Scan, 2oz bottle of couplant, rubber booth with padded wrist strap and stand
• Software Options: Corrosion module, precision module, pipe curvature correction
• Hardware options: Rubber boot with chest harness and bail, Magnetic wheel encoder, Alkaline battery tray, Spare battery, Foot switch, Test blocks, cables, probes, couplant, power bank, and Magnetic pipe stand (1/4, 20 aftermarket)
