XLED PROFlexible Articulating 4mm Borescope Camera

SHARE

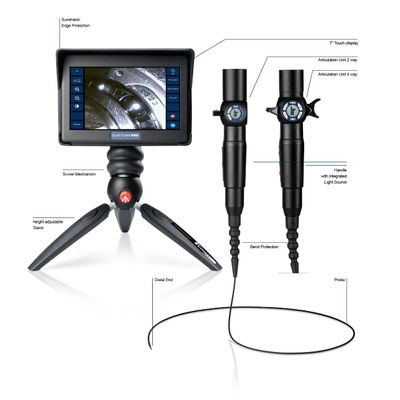

The XLED PRO small diameter videoscope system is comprised of a borescope camera with the 2.4mm, 3mm, 4mm or 6mm diameter video probe. XLED PRO videoscopes offer 2-way or 4-way articulation combining image quality imagery and cost-effective device pricing. Interchangeable videoscopes optimize the versatility of a scalable X-Capture platform in compact portable videoscope system configurations to meet all of your inspection needs.

Most popular related searches

IT Concepts provides various options for the XLED PRO video probe:

  • All videoscopes offer direct and side viewing options: 0° DOV (Direction of View) or 90° DOV side viewing, both with a 90° FOV (Field of View)
  • With all the diameters offering and lengths from 1 m to 7.5 m, the XLED PRO with X-Capture platform leaves nothing to be desired
With the new high powered FOLED (Fiberoptic-LED) Hybrid-illumination of the XLED PRO videoscopes inspections are faster, more complete and more reliable. The X-Capture 7” Touchscreen display is menu-driven for easy access to systems functions. The inspector has a complete inspection features set, including Wi-Fi and USB data exchange, establishing a complete and easy to handle Videoscope Inspection System. The XLED PRO Kit includes X-Capture, Touchscreen display or can be equipped with any HDMI display via IT Concepts HDMI ZOOM and HDMI PRO devices. The DVR PRO is your inspection PC equipped with Wi-Fi, USB devices (mouse, keyboard) and is offered in a complete, light-weight portable case. User selectable configurations include table top operation via AC power or select the optional battery and charger to operate remotely.
  • In foundry castings they are ideal for identification of blockages, inclusions, excess material, sand, scarring and burns
  • Check the machine finishes post-process and save time and money during in-process inspections
  • View cross-over holes, injector ports, spark plug holes and air passages with high resolution optics coupled to the X-Capture platform for data management, documentation, and image enhancement capability
  • Share data internally via live image streaming through Wi-Fi communication or exchange data utilizing an integral USB port
  • Choose the optimal probe diameters based on your unique application specific needs
  • Modular kits allow for quick and easy exchange of various videoscopes, improving videoscope inspection capabilities while streamlining inventories and reducing costs
  • Interchangeable videoprobes
  • 4mm borescope camera probe diameter
  • Ultra short tip
  • HD Micro-chip on the tip
  • FOLED Hybrid-illumination
  • 7“ Widescreen touch display
  • Portable documentation hub
  • Intuitive operation
