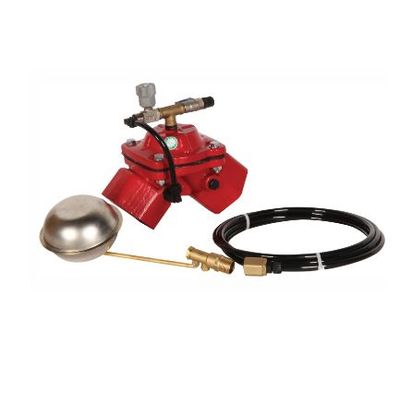

BKV Valve - Model GD90YFV -Float Level Control Valve
Horizontal float level control valves enable automatic water level control of tanks or reservoirs. The main valve is controlled by a 2-way pilot float. When the water level falls below the set level, the valve opens and begins filling (he tank; when it reaches the set level, the valve closes, maintaining a constant water level. Plastic hoses and fittings are standard with BKV plastic control valves.
Most popular related searches
control valve
level controller
float control valve
water level control
water level controller
drinking water system
float valve
ball valve
flow modulator
needle valve
- Reliable hydraulic operation,
- Drip-proof sealing,
- Proportional flow,
- Fully automatic operation,
- Always full tank or reservoir,
- Easy level adjustment,
- Maintenance can be performed without removing it from the pipeline
- Mount the float-operated pilot valve, indicated by “d”, securely according to the water level in the tank or reservoir.
- Connect one end of the hydraulic pressure signal tube, supplied with the valve, to the ball valve indicated by “a”, and the other end to the float-operated pilot valve.
- Open the ball valves indicated by “a”.
- Adjust the opening and closing speed of the main valve using the needle valve indicated by “c”
- Agricultural irrigation
- Industrial applications
- Irrigation and Drinking Water Systems
- Closed position: The valve is closed by applying pressure to the diaphragm through fluid pressure.
- Open position: Internal line pressure moves the diaphragm upwards, allowing flow.
- Modulation position: The diaphragm remains in a fixed position by balancing the internal and external line pressures.
