Tengs Valve - Model Q41 - Floating Ball ...

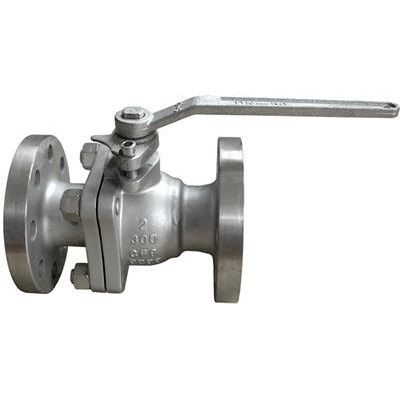

Tengs Valve - Model Q41 -Floating Ball Valves

FromTengs Valve International Limited

SHARE

Floating Ball Valves, Tengs valve supply high quality full bore floating ball valve, two piece, side entry, split body, soft seat; the ball valves are made of cast or forged carbon steel and stainless steel, flanged ends connections, lever or gearbox operated for all api, ansi and din standards industrial float ball valves.

Most popular related searches

floating ball valve

full bore ball valve

stainless steel flange

soft seated ball valve

split body ball valve

soft seated valve

FLOATING BALL VALVES STANDARDS:

Design and manufacture: API6D
Inspection and Test: API 598,API 6D
End flange dimension: ASME B16.5
BW ends dimension: ASME B16.25
Face to face or End to ends: ASME B16.10
Pressure-temperature rating: ASME B16.34

SPECIFICATIONS FOR CAST STEEL FLOATING BALL VALVE
Size Range: 1/2" - 10"
Pressure Ratings: ANSI 150, 300, 600, 900, 1500.
Body structure: 2 pc body or 3 pc body design.
Body materials: WCB, LCB, CF8, CF8M, CF3, CF3M etc.
Trim: 13CR, 304SS, 316SS, Duplex stainless steel.
Full bore and reduced bore
Actuator: Lever, Worm gear.
