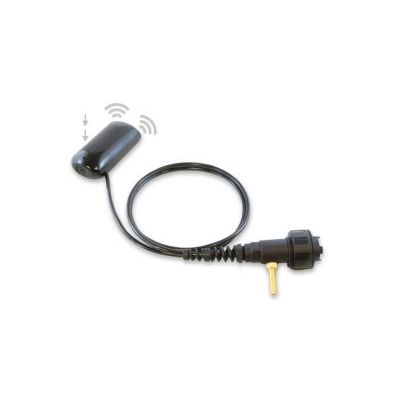

Flow (AV) Depth-Velocity Sensor
FromBlue Siren Inc.
Dual Wave Ultrasonic Doppler Area-Velocity Flow Sensor with Serial Data Transmission. Flow is measured using: Dual-Wave Ultrasonic Doppler technology. High resolution 15PSI stainless steel pressure transducer. Monitor flows in channels up to 30 ft without loss of depth accuracy. Monitor surcharge flow up to 30 ft with 1mm resolution.
Most popular related searches
depth sensor
flow velocity sensor
data logger
flow sensor
doppler technology
pressure transducer
area velocity sensor
ultrasonic doppler velocity
stainless steel membrane
flow velocity
Fully submersible sensor connects to any Blue Siren data logger or monitor. Standard SCADA outputs allow the end user to connect any PLC, RTU, or data logger with analog or serial inputs.
Area - Velocity Sensor specs:
- Encapsulated waterproof housing
- Wide operating voltage range: 6 V to 16 V
- Low power consumption
- 60 ma for 5 seconds
- Continuous reading mode - 4 Velocity values per second
- Serial connectivity at 4800 Baud Rate
- Stainless steel pressure membrane
- 0-5 V analog depth sensor output
