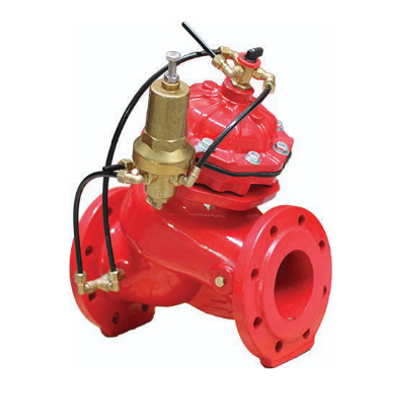

BKV Valve - Model YF16DKV -Flow Control Valve
BKV 116 Series Flow Control Valves; Flow control valves are designed to prevent the amount of water flowing through the network from exceeding the desired flow rate. These valves automatically maintain the flow rate at the desired level using a pilot light, counteracting pressure fluctuations in the network.
Most popular related searches
flow control valve
flow control
control valve
drinking water system
fire extinguishing
fire extinguisher
water saving
drinking water
industrial irrigation
industrial fire extinguisher
- Precise Flow Rate Control: Precisely controls and maintains the liquid How at the desired level, ensuring efficient system operation.
- Durable Material: Made of stainless steel and high-quality plastic materials. It is resistant to harsh conditions and provides long-lasting performance.
- Easy Installation and Maintenance
- User-friendly design allows for quick installation and maintenance.
- Energy and Water Saving: Mow management saves energy and water, reducing operating costs.
- lx>w cavitation risk.
- Start the pump or open the main valve in the network to supply water to the system.
- Set the 3-way (a) selector valve on the valve to the auto position.
- The pilot valve adjustment bolt is factory adjusted according to the desired flow rate.
- Do not tamper with the pilot valve adjustment boll.
- If the valve does not provide the necessary regulation, contact our company.
- Agricultural irrigation
- Fire extinguishing
- Industrial applications
- Irrigation and drinking water systems
- Closed position: The valve is closed by applying pressure to the diaphragm with fluid pressure.
- Open position: Flow is provided by the internal line pressure moving the diaphragm upwards.
- Modulation position: The diaphragm remains in a fixed position by balancing the internal and external line pressures.
