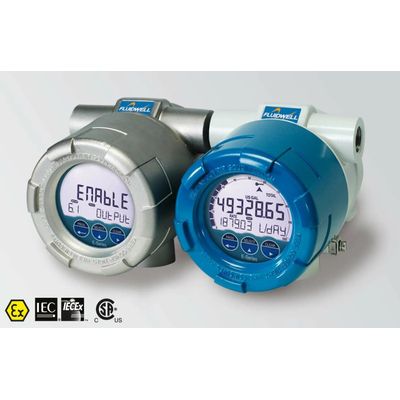

Metri - Model E112 -Flow Logger and Totalizer – Explosion Proof
The E112 is a popular model in the Fluidwell range of explosion proof flow rate indicator / totalizer. In addition to the average K-Factor, 15 linearization points can be entered. The unit will interpolate between these points greatly enhancing accuracy in any flow range. The E-series is distinguished by its high quality manufacturing and its functionality driven European design. We believe, it is not just about fulfilling the requirements for explosion proof, but it is about safety during daily operation.
Ruggedness and reliability is where Fluidwell stands for and it is now available in a comprehensive well designed and purpose driven Explosion proof flow rate indicator / totalizer.
The flow/data logging is optional available and when chosen, it replaces the basic 15 historical (previous) day totals. Each log contains the flow rate, total, acc. total, time stamp and log number. The log can be downloaded as .csv file with the free software tool.
- Saves time and improves flexibility with the through-glass keypad: no need to open the front cover.
- Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
- Durable high-grade stainless steel 316L Ex d enclosure withstanding extreme (maritime) conditions.
- Explosion proof according ATEX, IECEx and CSA C-US.
- Aluminum or high grade stainless steel Ex d enclosure.
- Easy installation with the spacious chamber and plug & play connectors.
- Cost saving with an easy to install, 1” NPT thread for direct flowmeter mounting.
- Key information at a glance as the display shows flow rate, total, accumulated total, measuring units and a flow rate indicating speedometer.
- 15 point linearization of the flow curve – with interpolation.
- Easy K-factor and engineering unit configuration for volumetric or mass. Learn more with this interactive tutorial.
- 7 digit flow rate / total and 11 digit accumulated total.
- Bright LED backlight.
- Current day total (Daily total), previous day total (both non-resettable) and 15 historical day totals can be displayed.
- Flow logging to survey daily operation and unexpected events with 600 daily, 1500 interval and 724 event logs (optional). Learn more with this interactive / video tutorials.
- Easy configurable via PC with free downloadable remote configuration tool and special communication cable (ACE01/02/06/07).
- Auto backup of settings and running totals.
- Ambient temperature aluminum enclosure: -40°C to +70°C (-40°F to 158°F).
- Ambient temperature stainless steel enclosure: -40°C to +67°C (-40°F to 153°F).
- Various accessories are available for this product.
- Pulse input retransmission, i.e. for calibration purposes or amplification and squaring of sinewave/coil signals.
- Flow measurement with mechanical flowmeters where a precise calculation over the full measurement range is required.
- If re-transmission of the flow rate and/or totalizer functions or serial communication is desired.
- The E-Series can be used in rough and tough applications, beyond being just explosion proof. Its sturdy design and ease of use are unequaled by any other explosion proof indicator in the market! The E-Series is always your first and safest choice in explosion proof applications.
