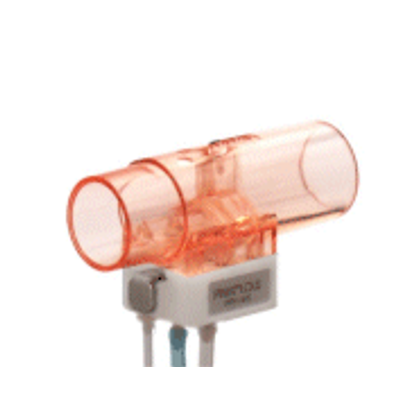

Piston - Model PinkFlow PPF-18 -Flow Meter

• Hygienic single-use application
• No moving parts
• Insensitive against condensation and vapour
• Integrated gas sampling port
• Fully interchangeable flow-meters
• No need for recalibration after changing
• Quick pneumatic coupling Fully recyclable made from homogenous polystyrene

The PinkFlow* flow-meter fully complies with the specifications and requirements of the Standardization of Lung Function Testing ATS/ERS Task force (European Respiratory Journal 2005)

• Flow meter: PinkFlow
• Type: PPF-18
• Principle: Symmetric and averaging Pitot tube
• Flow range: ±18 l/s
• Accuracy: ±2% or 50 ml, whichever is greater
• Dead space: 36 ml
• Resistance: 60 Pa/l/s @ 15 l/s
