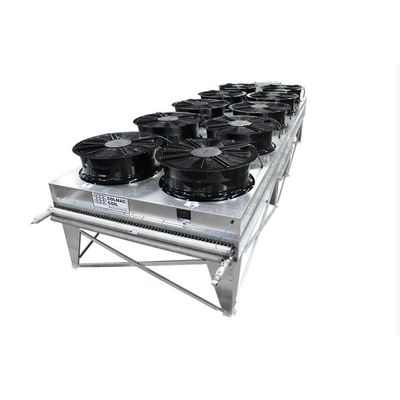

Model Flat Deck - Vertical -Fluid Coolers
FromColmac Coil
By offering a wide range of flatbed Condenser and Fluid Cooler configurations, Colmac Coil accurately meets any application demands. Your requirements lead the design of your solution. Whether you need a low carbon footprint, low noise, improved capacity density or have limited space, you will get a solution that fits your needs.
Most popular related searches
stainless steel tube
fluid cooler
epoxy coating
low carbon
dry fluid cooler
industrial dry cooler
carbon footprint
damper
air intake
discharge protection
Designed to fit your footprint
- Capacity range: 3 – 25 TR
- 1-16 fan configurations
Tubes/fins options
- Aluminum tubes/aluminum fins
- Aluminum tubes/epoxy coated aluminum fins
- Steel tubes/galvanized steel fins
- 304 Stainless steel tubes/ 304 stainless steel fins
- 304 Stainless steel tubes/aluminum fins
- 304 Stainless steel tubes/epoxy coated aluminum fins
- 304 Stainless steel tubes/anti-microbial alloy fins
- 316 Stainless steel tubes/ 316 stainless steel fins
- 316 Stainless steel tubes/aluminum fins
- 316 Stainless steel tubes/epoxy coated aluminum fins
- 316 Stainless steel tubes/anti-microbial alloy fins
Coil casing
- Standard G-235 galvanized steel
- Optional 304 stainless steel
- Optional 316 stainless steel
Fan type
- Composite
- Aluminum
- Stamped Aluminum
Low ambient package
- Weather hoods
- Inlet air dampers
- Optional inerior heater
- Optional insulated cabinet
Weather hoods
- Weather hoods
- Gravity dampers on discharge
- Hoods protect the coil core from harshe weather conditions
Weather Guards
- Low cost alternative to reduce weather damage
Inlet protective screens
- prevents debris from entering coil
- Allows for easier cleaning
