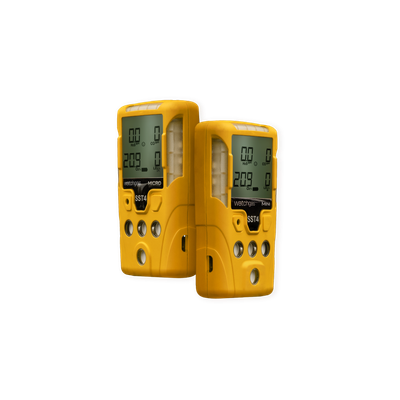

WatchGas - Model SST4 Micro and Mini -Four-Gas Devices
As many industries move from single gas to a multigas approach, it is essential for end-user adoption. The SST4 Range is designed with simplicity, size, and with the user in mind. With its compact yet rugged design, the SST4 is there when needed. From use in the hot temperatures of the steel industry or Hazmat users to the extreme environments in the Oil and Gas industry. With a wide range of user options, the SST4 can be tailored for many use cases and applications. The device can be set up simply by using the WatchGas SST application, calibration, and bump test records. With Compliance Check, it has never been easier to manage, maintain, and ensure maximum uptime of your fleet of devices.
- Easy setup
- Near Field Communication built in as standard
- 95dB @ 30cm
- Wireless charging
- Longer runtimes
- Fastest T90 in its category
- Largest LCD
Size: SST4 Micro: 103.9mm x 62.4mm x 26.1mm SST4 Mini: 107.9mm x 62.4mm x 26.1mm *Dimensions are stated without alligator clip. Please add 4mm in depth for dimensions with alligator clip.
Weight: SST4 Micro: 184g SST4 Mini: 188g
Operating temperature: -40 to +60°C / -40 to +140°F
Humidity: 5% - 95% RH (non-condensing)
Typical battery life: SST4 Micro: LEL Low Power Catalytic – 48hr SST4 Mini: LEL Catalytic Bead Sensor – 13hr SST4 Mini: LEL NDIR – 200hr
Induction Charger: 2-3 hours
Event logging: 100 events
Data logging: 6 months
IP: 65/68
Communication: NFC
Calibration: 6 months as standard
Certifications & Approvals: North America: Class I, Div. 1, Gr. A, B, C, D. Class I, Zone 0, Gr. IIC ATEX/IECEx/UKEX LEL-LPC and LEL-CAT II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma -40°C ≤ Tamb ≤ +60°C EN 50270:2015+AC:2016, EN 301 489-1 V2.2.3 EN 301 489-3 V2.1.1, RoHS EN63000:2018 LEL-IR sensor II 1 G Ex ia op is IIC T4 Ga I M1 Ex ia op is I Ma -40°C ≤ Tamb ≤ +60°C
Warranty: 2-year warranty as standard
