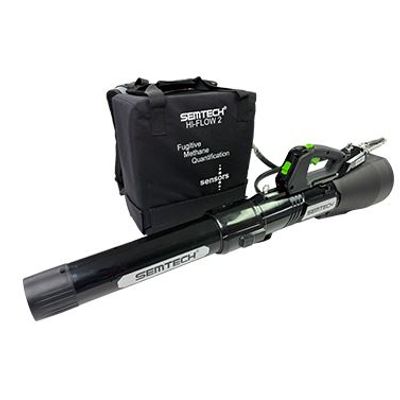

Sensors - Model SEMTECH HI-FLOW 2 -Fugitive Methane Analyzer
FromSensors, Inc.
Our fugitive methane analyzer is the latest entry in Sensors Emissions Measurement Technology (SEMTECH) family. Sensors’ fugitive methane analyzer brings to bear our emission measurement experience into the oil and gas industry with a focus on leak detection and repair (LDAR).
Most popular related searches
leak detection and repair LDAR
methane analyzer
gas sensor system
gas sensing system
emissions monitoring system
emissions monitoring
sensor system
fugitive emissions
gas sensing
LDAR program
Sensors, Inc. is proud to present the latest in direct quantification of leaks in the 0.0005 to 25 CFM (0.015 to 700 lpm) range with accuracy better than 5%. This device uses state-of-the-art flow and gas sensing technologies that are integrated into a handheld unit for accurate measurement during established LDAR programs.
- Methane specific advanced gas sensor technology
- Battery – LiFEPO4 (spare battery included)
- Built-in Wi-Fi communication utilizing an SBC Linux framework
- Web-based GUI for interactive full control on user preferred display
- GPS for location data recording during testing
- Built-in scripts for regulatory compliance, sampling protocols, and periodic pre and post checks and audits
- SQL data management architecture with advanced pre-loaded queries for automated report generation
- Total Flow Rate*: 5-30 CFM (upper limit dependent on accessories)
- Measurable Leak Rate*: 0.0005 to 25 CFM (0.015 to 700 lpm) (LDL 0.6 g/hr)
- Leak Rate Accuracy: <5% of full scale or 15% of point, whichever is lower (for volume or mass rate)
- Flow Rate Accuracy: < ±2.5% (with density correction)
- TDL Accuracy: < ±2.5% p.t.
- Background Correction: Recommended pre- and post- correction with a precision of 2 ppm
- Hazardous Classification: Class 1, Division 2, Group D, T4
- Size (W x H x D):
- Analyzer: 30 x 30 x 14.5 cm
- Sampler: 66.8 x 19 x 12.7 cm
- Weight:
- Analyzer: 7.9 Kg
- Sampler: 4.9 Kg
- Connection: Wi-Fi
- Data Output: Customizable csv files / compressed zip files with configuration data
- Memory: 4000 2-hour tests; >10 Gigabytes database (recommended annual cleanup)
- Batteries:
- LiFEPO4 (with spare battery included) rated 12.8V, with capacity of 96 Wh
- Run Time: 4 to 6 hours (per battery) at 50% duty cycle
- Charging Time: ca 4 hours
*Inlet restrictions on the handheld sampling unit will reduce the maximum achievable flow.
