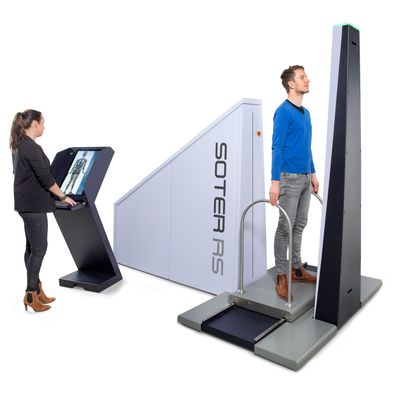

ODSecurity - Model Soter RS -Full Body Scanner
FromODSecurity
Within a matter of seconds any hidden item imaginable will be revealed. It doesn’t have to be metal, all kinds of other material will also be detected, like organics, wood and plastics. The Soter RS reveals it all by showing a clear difference between human tissue and other materials. This way, thanks to the Soter RS’ eagle eye, no contraband (such as drugs, cellphones or weapons) will ever escape your attention. Even ingested or camouflaged items will be detected effortlessly.
Most popular related searches
- Head to toe full body scanner
- Detects all types of contraband
- The highest available image quality
- Worldwide proven technology
- No radiation for operators
SCANNER SPECIFICATIONS
- General scanning device Soter RS
- Weight 700 kg
- Operating temperature 0-45 ° Celcius
- Sound pressure <51 dB(A)
- Type-C standards ANSI/HPS N43.17-2009 IEC62463:2010
- Dimensions W175 x L290 x H235
- Platform speed 0,6 - 0,11 m/s
- Humidity 30% to 70% non-condensing RH
- Dosage levels 3 levels, adjustable from 0,2 µSv up to 6 µSv
- Start-up time <2 min
OPERATOR CONSOLE
- Monitor 23” multi touch screen
- Identification & authentication Biometric reader (fingerprint), NFC-reader and barcode scanner
SOFTWARE FEATURES
- Various filters for analyzing the image
- PREA compliancy
- Highly secured database with: • Multiple report functions • Dose limitation • Encryption • Data import & export • Simulation / random scan
OPTIONS
- ID camera
- Supervisor monitor
- Connected landscape monitor with detailed close up-view
- Tablet with viewer software, wirelessly connected to the Soter RS
- Bi-directional central server database with optional: Data exchange, adjustable to network speed
- Operator console desktop, stand alone or wall mounted
- Desktop computer with viewer software connected to the Soter RS by Ethernet
