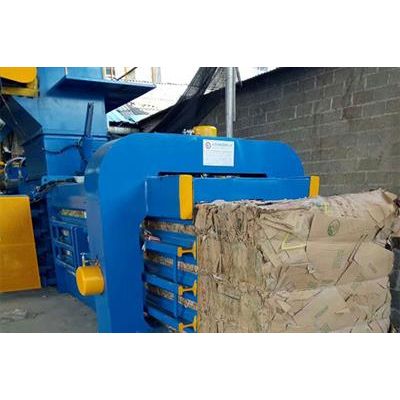

Model YM-WX120 -Fully Automatic Baler

• Main Motor 37kw*1 set+1.5kw+2kw+5.5kw
• Oil Cylinder D250mm*d180mm
• Feed Opening Size L1500mm*W844mm
• Bale Size W914mm*H914mm*L
• Bale Weight(Cardboard) 500-700kg (5-8min/ bale)
• Packing Density 500-550kg/m3
• Number of Tying Wire 4
• Water Cooling System Water tower 8 ton*1set、OR800Cooler
• Steel Conveyor L12000mm*W1200mm*H4000mm
• Cycloid #4reducer+5.5kw motor
• Covering Area L17500mm*W12500mm*H4700mm
• Machine Weight Main body 15ton，Conveyor 4ton
• Applications For compressing paper,cardboard,box

Thanks to the stable system, unique design and perfect device, Yongmao baling machines possess high performance, high efficiency, and good qualities. They are easy to operate and save energy.

• System stability
  Hydraulic circuit system is high-performance, low noise and no vibration
• Save energy
  Unique decentralized-scissors design. High efficiency and prolong machine`s life cycle.
• Reduce error rate
  Automatic line bundle device accelerate the running speed, simply the cleaning process.
• Adjustable length
  Baling length can be changed. Make it more tight in need.
• Package accuracy
  Hydraulic threading device makes the packing accurate and hard to loose
• Simple operation
  PLC control system is easy to operate. Save your time and labor.
