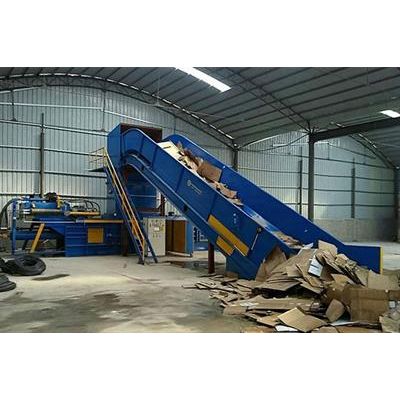

Model YM-WX200 -Fully Automatic Baler

Working Mode Full Automatic. Capacity 18-20TON/HR(3-5min/bale). Power System 96kw. Voltage 380V/220VAC 50-60HZ According to client’s local standard. Main Motor 37*2set+7.5kw+1.5kw+2kw+11kw. Oil Cylinder D300mm*d210mm. Feed Opening Size L2050mm*W1130mm. Bale Size W1200mm*H1400mm*L.

Most popular related searches

fully automatic baler

automatic baler

Bale Weight(Cardboard) 1000-1200kg
Packing Density 500-550kg/m3
Number of Tying Wire 5
Water Cooling System Water tower 15 ton*2set、OR800Cooler*2set
Steel Conveyor L15500mm*W1800mm*H4500mm
Cycloid #5reducer+11kw motor
Covering Area L17500mm*W15300mm*H5700mm
Machine Weight Main Body 26ton+Conveyor 12ton
Applications For paper&cardboard manufacture、recycling center

Thanks to the stable system, unique design and perfect device, Yongmao baling machines possess high performance, high efficiency, and good qualities. They are easy to operate and save energy.

System stability
Hydraulic circuit system is high-performance, low noise and no vibration
Save energy
Unique decentralized-scissors design. High efficiency and prolong machine`s life cycle.
Reduce error rate
Automatic line bundle device accelerate the running speed, simply the cleaning process.
Adjustable length
Baling length can be changed. Make it more tight in need.
Package accuracy
Hydraulic threading device makes the packing accurate and hard to loose
Simple operation
PLC control system is easy to operate. Save your time and labor.

Model YM-WX200 -Fully Automatic Baler

Technical Data

Features
