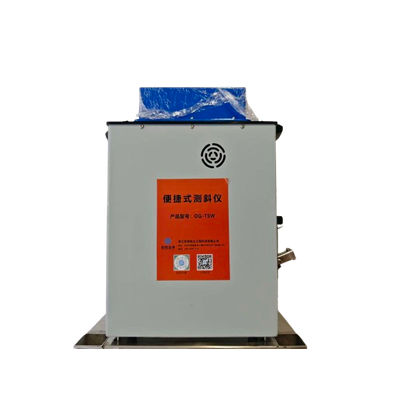

GeoSitter - Fully Automatic Zero-Calibration Inclinometer
The Geositter Fully Automatic Zero-Calibration Inclinometer is a sophisticated geotechnical monitoring system designed for applications that require precision and adaptability. It is equipped with integrated inclinometer and water level sensors. Optional modules enhance the system's versatility, enabling monitoring of rainfall, stress, strain, and displacement. Notable features include its zero-calibration function, which allows for efficient deployment, and its multi-parameter monitoring capability. Real-time data upload through 4G ensures that users have continuous access to information. It offers multiple power options, including AC charging, lithium batteries, and solar power, and boasts an IP68 waterproof rating for use in challenging environments. Technical specifications include a 16 V/6 Ah lithium battery and a solar panel with options for standard 12 V/30 W or low-frequency 12 V/10 W operation. The system is suitable for a wide range of applications, from building and bridge monitoring to geological hazard assessment.
The Geositter Fully Automatic Zero-Calibration Inclinometer is a high-precision, smart geotechnical monitoring system designed for both mobile and fixed applications. It integrates inclinometer and water level sensors, with optional modules for rainfall,stress,strain,and displacement monitoring.
- TSW Robot is a high-precision, smart geotechnical monitoring equipment suitable for both mobile and fixed installations.
- It features integrated inclinometer and water level sensors, providing accurate and reliable measurements.
Optional modules are available for monitoring rainfall, stress, strain, and displacement, allowing for comprehensive geotechnical data collection in a variety of applications.
- Zero-Calibration Function: Fully automated for quick deployment
- Multi-Parameter Monitoring: Inclinometer, water level, settlement, and optional modules
- Cloud-Based Data Upload: Real-time transmission via 4G
- Flexible Power Supply: AC charging, lithium battery, or solar-powered
- Field-Ready Design: IP68 waterproofing, suitable for harsh environments
- Range : 70 m (inclinometer, water level, settlement)
- Inclinometer Accuracy : ±2 mm/50 m; Resolution: 0.0001°
- Water Level Accuracy : 1 cm; Resolution: 1 mm
- Settlement Accuracy : 1cm; Magnetic ring resolution: 1 mm
- Minimum Bending Radius : 2.7 m (for Ø70 mm inclinometer casing)
- Measurement Speed : 50 m in approx. 23 min
- Power Supply : 16 V/ 6 Ah lithium battery (standard or low-temp)
- Solar panel: 12 V / 30 W (standard) or 12 V/10 W (low-frequency use)
- Battery Life : Up to 58 measurements (20 m range) per charge
- Ingress Protection : IP68 (electronics compartment)
- Operating Temp : -20°C to +60°C; Humidity: 0-100%
- Communication : 4G LTE (full network compatibility)
