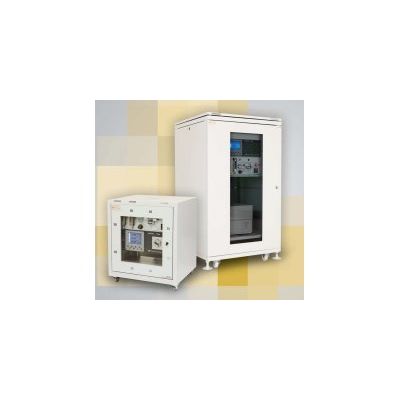

TerraLab - Model TRL-GA Series -Gas Analyzers Systems
Based on mass spectrometry, nondispersive infrared, fuel cell and TCD sensors. Integrated with a properly designed TRLGCU (gas conditioning unit) for pressure, flow, temperature and composition conditioning. Installed either in a 19” rack cabin or in a table top box. Data acquisition, quantitative result calculation and reporting via computer. Standard units or tailored according to the needs.
Based on IR technology
- Built-in pressure and temperature compensation
- LCD display and selectable analog output: 0-20 mA or 4-20 mA
- Measuring ranges: 0-500/1000/2000/3000/5000ppm; 0-1/3/5/10/30/100%
- Sample flow: 100-1000 mL/min
- Response time: 10 seconds T90
- Zero and span adjustment
- Zero drift: 2% per year at constant temperature
- Adjustable high and low alarms
Based on IR technology
- Built-in pressure and temperature compensation
- LCD display and selectable analog output: 0-20 mA or 4-20 mA; RS232 optional
- Measuring ranges: 0-3/5/10/30/100%
- Sample flow: 100-1000 mL/min
- Response time: 10 seconds T90
- Zero and span adjustment
- Zero drift: 2% per year at constant temperature
- Adjustable high and low alarms
Based on IR technology
- Built-in pressure and temperature compensation
- LCD display and selectable analog output: 0-20 mA or 4-20 mA; RS232 optional
- Measuring ranges: 0- 5/10/30/100%
- Sample flow: 100-1000 mL/min
- Response time: 10 seconds T90
- Zero and span adjustment
- Zero drift: 2% per year at constant temperature
- Adjustable high and low alarms
- For quantitative analysis of CO, CO2, CH4, H2, H2O, N2,O2, hydrocarbons to be specified
- Engineered for fine tuning according to specific customer application
- Based on combined MS and IR technology
- Integrated with gas conditioning for sampling, sample cleaning, cooling, condensate separation and automated disposal without loss of analytes, flow adjustment, pressure regulation
- LCD display and selectable analog output: 0-20 mA or 4-20 mA; RS232 optional
For analysis of CO2, CH4, O2
- Engineered for fine tuning according to specific customer application
- Based on combined IR and fuel cell technology
- Integrated with gas conditioning for sampling, sample
- Cleaning, cooling, condensate separation and automated disposal without loss of analytes, flow adjustment, pressure regulation
- LCD display and selectable analog output: 0-20 mA or 4-20 mA; RS232 optional
- Low CH4 and high O2 alarm setting
Based on fuel cell technology
- LCD display and selectable analog output: 0-20 mA or 4-20 mA; RS232 optional
- Measuring ranges: 0-10 ppm to 0-10000 ppm, user selectable; 0-25% for calibration
- Response time: 45 seconds T90
- Accuracy: 1% of full scale
- Adjustable high and low alarms
For use in monitoring medical grade oxygen in PSA equipment
Based on fuel cell technology
- LCD display and selectable analog output: 0-20 mA or 4-20 mA; RS232 optional
- Measuring ranges: 0-100%
- Response time: 10 seconds T90
- Adjustable high and low alarms
Gas analyzers for reaction systems in catalysis research,fermentation, biomass gasification and pyrolysis, syngas production from NG, reforming, water gas shift and FT reaction studies and many others that a researcher or industrialist may need...
