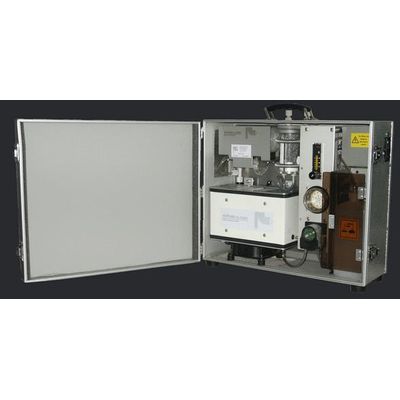

Gröger - Model GOT 100 -Gas Conditioning Systems
Achieve perfect measurement results in emission analysis by optimizing the processing of the gas to be analyzed with the patented GOT 100 measuring gas treatment system. The GOT 100, your complete solution in emissions analysis. Effective combination of Peltier coolers with cyclone heat exchangers (patent No. DPB 38 33 192), filters and permeation dryers, which reliably dedusts and dries the sample gas.
-
Aerosols and interfering gases are retained
-
Reliable dedusting and drying of the gas
-
A device for cooling, filtering and drying
-
Detailed preparation on mounting plate
-
Fast operation in about five minutes
The outstanding performance of the GOT 100 is already clear from the list of its basic equipment. The Basic is customer-specific.
We make everything possible for you.
-
Built-in Peltier cooler GO-PK 1
-
Integrated cyclone heat exchanger (pat. DPB 38 33 192)
-
Aerosol filter / membrane filter
-
Pelting element and permeation dryer
-
Gas pump
-
Condensate pump
-
Flow controllers
-
Power supply for heated gas sampling probe
-
Power supply plug and temperature control for heated line
-
Holder for heated line for attachment to the case
-
Membrane filter with condensate monitor for shutting off the sample gas pump with moisture penetration
- Height 390 mm
- Breadth 490 mm
- Depth 150 mm
- Weight approx. 17 kg
- Mounting holes 470 x 370 mm
- Power supply 230 V / 50 Hz
- Flow rate 50 to 250 l/h
- Power consumption max. 950 VA
- Ambient temperature max. 30°C
