Scentroid - Model GD600 -Gas Dilution System

The Scentroid GD600 Gas Dilution System provides an automated calibration solution to simplify calibrating chemical analyzers. GD600 generates its own zero-air by scrubbing the ambient air using its 3-stage filter. Calibration gases are diluted using zero air or optionally N2 to provide a reference gas of any concentration. This allows the operator to easily conduct multi-point calibration. By controlling the mass flow of the reference gas, GD600 not only simplifies the calibration process but also reduces the consumption of reference gases. Through the user-friendly android app, the user can command the GD600 to perform single or multiple point calibrations simply by entering the desired gas concentrations and time between samplings for each point.

Save on Gas
Reduce calibration gas consumption significantly with the GD600 dilution system. One gas bottle will last multiple calibrations

High Accuracy
Continuous dilution monitoring feedback for 100% reliability and accuracy. Medical grade mass flow controllers with 99.5% dilution accuracy

Power Supply
Built-in battery for total portability. Packaged with 120 – 240v charger unit

Zero Air Generator
Built-in zero air generator provides 7000 ml / min. System has a dilution range of 2 to 5,000

Simple Process
Fully automated dilution so user only need to provide desired dilution and minimum output flow rate

System
Controlled through any device via Bluetooth connectivity. Displays environmental variables including temperature and humidity

Efficient and Cost Saving
The dilution system eliminates the need for sample bags. Normally, 3 gas canisters are required per sensor when calibrating. With this system, 1 bottle will last through multiple calibrations. Plus, there is no longer a need to remove equipment to send to a lab for re-calibration, removing expensive transportation costs and unnecessary labour. All processes are now infield.

Ease of Use
Fully automated dilution. The user is only required to provide desired dilution and minimum output flow rate. Inlet for 0 – 10,000 ml/min dilutes N2/zero air from external sources. Scrubbers with patented porous pellets are then used for removing contaminants. All potentially harmful gases and odours emitted during calibration are also scrubbed clean.

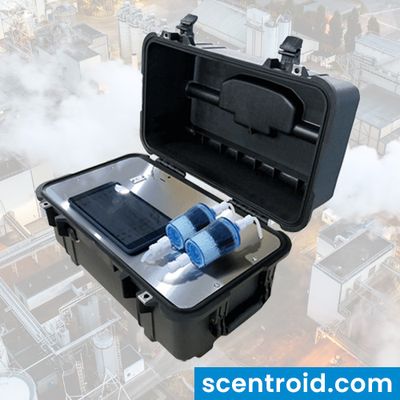

Durability: Build into a pelican case for ease of transportation and operation
Inlet: Inlet designed for 0 - 10,000ml / min dilution
Zero Air Generator: 7000ml / min
Dilution Range: 40 to 5000 (with build-in air supply)
Filter Scrubbers: Patented porous pellets
Power: Built-in Battery, 120 - 240v charger
Communication System: Bluetooth connection to any Android device

Device Health: Daily Sensor Health & Replacement Check and Reminders
Warranty: 24 Months Full Warranty (Parts, Including Sensors)
