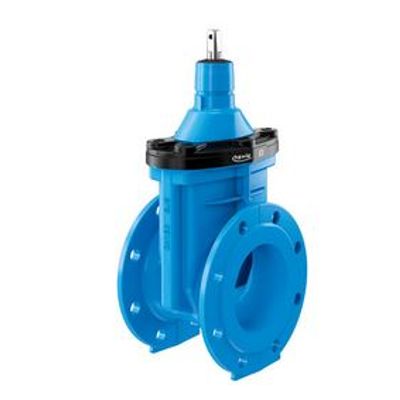

Hawle - Model 4000E3 -Gate Valves
Standard version: without handwheel and extension spindle. Design versions: for actuator: No. 4000ELE3 with position indicator: No. 4000STE3 for seawater: No. 4002E3, No. 4702E3. Special versions: on request.
Most popular related searches
gate valve
resilient seated gate valve
position indicator
resilient seated valve
spindle
pipeline pigging
- Resilient seated gate valve with smooth straight-through bore
- Flanges sized in accordance with EN 1092-2, drilled according to
EN 1092-2 | PN 10 standard (4000E3, 4700E3);
EN 1092-2 | PN 25 (4010E3*, 4710E3*)
EN 1092-2 | PN 16 from DN 200 (4000E3, 4700E3)
Please specify on order - other standards on request - Suitable for cleaning with a cleaning pig
- One extension spindle for several dimensions
- Suitable for operation by automatic actuators
- Easy refitting for position indicator and automatic actuators on the standard bonnet
- Duplex stainless steel spindle
