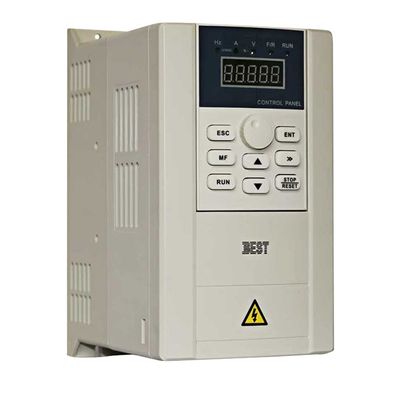

Best - Model FC300 -General VFD Variable Frequency Inverter
FC300 drive is a high performance VFD Variable Frequency Inverter for AC motors running control. The operation is very easy with one-click debug and parameter copy functions. Widely used for various low-frequency intelligent machines, such as engraving machine, circular weaving machine, wood making machine, cutting machine, food processing machine, textile machine, cutting machine, pouch machine and blowing machine.
Power Range: 0.75~15KW
Control Method: V/F control
Characteristics:
- CE Certified.
- Support RS485 communication interface with standard Modbus protocol.
- Functional 6 channels digital inputs.
- Sudden Power-off Protection and AVR automatic voltage stabilization.
- Smooth and shock-free startup for running motors.
- LCD control panel is optional for convenient and efficient operation.
- 8 stage simple PLC, multi-speed and PID control.
RS485 Communication
The VFD Frequency Inverter provides RS485 physical communication terminal interface; Adopt standard Modbus Protocol. Convenient for network setup and principle computer monitor.

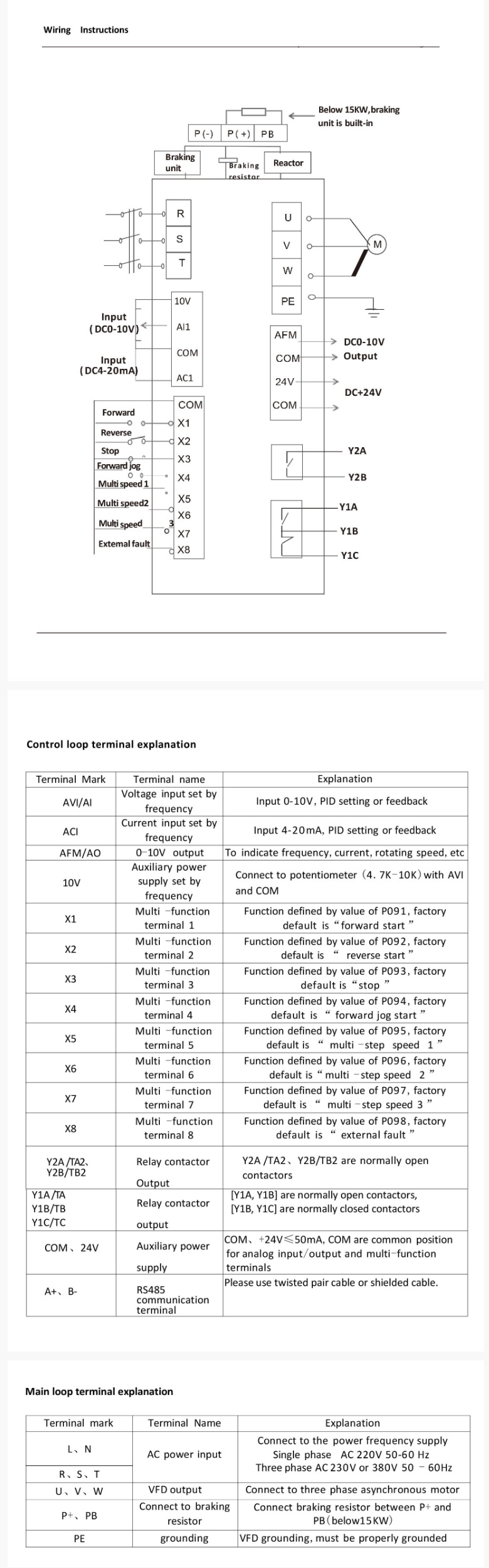

IO Interface
Provide functional 6 channels digital inputs. 1 channel for high-speed pulse input (can be used as a digital input), 2 channels for analog inputs, 2 channels for relay outputs (1 for loads under 2.2 kW) and 1 channel for analog output.
Sudden Power-off Protection
Provide sudden power-off protection and AVR automatic voltage stabilization function. It can keep constant output voltage while the network voltage varies.
Optional Control Panels
Key panel and LCD control panel are optional for convenient and efficient operation.
Simple PLC
VFD Variable Frequency Inverter uses 8 stages simple PLC, multi-speed and PID control.
