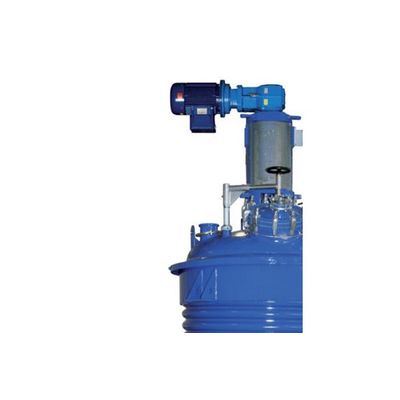

3V Tech - Model BE Type -Glass Lined Reactor

Construction

• BE : one piece construction

Jacket Design

• As standard type B1 acc. to DIN 28151
• On request other types acc. to DIN 28151

Design of Half-pipe Coil

• Design of half-pipe coil
• The half-pipe coil is supplied as an alternative to the jacket.
• Shape of the fluid flow section : half-pipe (DIN 28128)
• Zones : one or more to be agreed
• Single or double circuit : to be agreed

Nozzles

• Flanges to DIN 2501 PN 10
• All glass-lined nozzle are complete with loose backing split flanges acc. to DIN 28150
• Other flange standards (ANSI) on request

Gaskets

• PTFE envelope type with stainless steel insert for all glass-lined connections

Agitator System BE:

• Removable turbine agitator with presslock
• Coupling system
• Standard design : three blade 45 degree
• Pitched-blade turbine combined with beaver tail
• Baffle(s) acc. to DIN 28146
• Other designs available on request : Retreat-blade impellers acc. to DIN 28157 (two piece construction), multiple turbine agitators, wide blade turbine, etc..

Drive Unit

• Asynchronous three-phase electric motor, EEx-d certified
• Speed reducer with ground profile gears
• Connection between motor and reduction gear : direct monted
• Pedestal acc. to DIN 28162 T1 (with drive flange acc. to DIN 28137)

Atex Conformity
Our standard : external + internal = Group II , Category 2 , G (zone 1) D (zone 21)

Shaft Seal

• Acc. to DIN 28138 T2 and T3
• Double mechanical seal assembly of cartridge design for quick replacement, side dismantling without removal of gear with thermometer and pressure gauge
• Pressurising and lubrication unit with thermosyphon circulation complete with hand-pump for topping up

Supports

• Legs - Side brackets - Support rings acc. to DIN 28145 T4
• Other designs supplied on request

Glass-Lining

• Vessel G2208 Blue, White or Light-Blue
• Available also other types of glass to suit specific requirements.

More specific data can be obtained from our laboratories

Test and inspection of the glass-lining to DIN 28063

• Visual inspection - Thickness control of the coating
• Statiflux (electrified particle test)
• Spark test to ISO 2746 - For vessel and accessories, at 20.000V immediately after glass-lining. For vessel and accessories, at 12.000V prior to shipment

The supply includes

• Glass-lined protection ring for the manhole
• Spring-assisted lifting device to open the manway cover
• Sight glass
• Light glass.
