Tengs - Model 1500LBS - 2500LBS -Globe Valve

BS1873 Cast Steel Industrial Globe Valve, Pressure Seal Bonnet (PSB) Design, High Pressure Ansi Class 1500Lb and 2500Lb, Rising Stem, Outside Screw and Yoke (OS&Y), Carbon Steel and Stainless Steel Metal Seated Plug Disc Globe Valves.

Most popular related searches

globe valve

pressure seal

metal seated ball valve

bolt seal

plug valve

Design & Manufacture: ANSI B16.34, BS 1873
OS&Y Construction, Bolted Bonnet, Pressure Sealing Bonnet
Size Range of Globe Valve: 2" to 12" / Dn50 - Dn300
Pressure Ratings: ANSI 1500LB, 2500LB
End Connections: Flanged, Butt Weld
Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, Duplex Stainless Steel or Equivalent
Various Trim Materials are Available to Suit Service Conditions
Actuator: Handwheel, Gearbox
NACE MR 0175 on Request

Tengs - Model 1500LBS - 2500LBS -Globe Valve

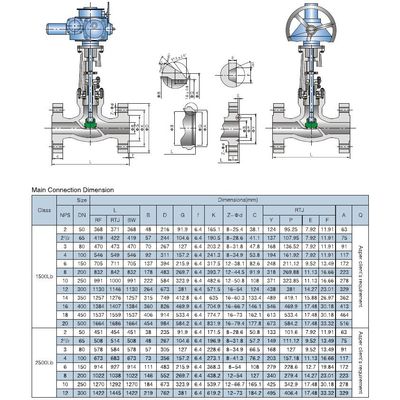

Technical Specifications
