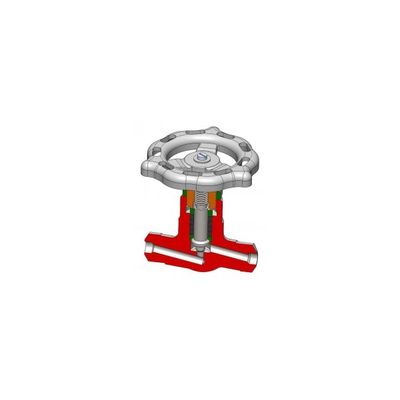

KiP - Model V46.0 -Globe Valve
FromBularmex-IK
The KiP globe valve (manometric) has pressure seal construction for sizes from DN8-15 PN250 and working temperature up to 600°C. The seat of the stem is produced from welded-on hard alloy material (Stellite) with body of stainless steel Wâ„–1.4541/X6CrNiTi18-10. Connection: on welding; on thread; union; nipple connection for manometer. The model successfully replaces the needle valves on the installation.
Most popular related searches
globe valve
pressure seal
high-pressure valve
seismic testing
needle valve
high-pressure globe valve
seismic
manometer
valve testing
- V46.0 – closing globe valve
- Diameters: DN8 to DN15.
- Pressure: PN63 to PN250
- Working medium: water, water steam and other liquids and gasses
- Woring temperature: up to 600°C.
- Application: power engineering, chemical and nuclear industry
- The body is produced from stainless steel W№1.4541/X6CrNiTi18-10
- The globe valve V46.0 has pressure seal construction
- The seat of the stem is produced from welded-on hard-alloy material.
- Connection: on welding; on thread; union; nipple connection for manometer.
- Operation by handwheel
- The globe valves are tested in accordance with ЕN 12266 or according to customer’s requirements.
- The globe valve can be mounted in any position
- Pressure seal design, insulating the fliud in the body
- Monolithic stem with hard welded-on material (Stellite)
- Insulated stem nut from the working fluid
- Seismically tested according to НП-068-05 (slass of safety III и seismic category II)
