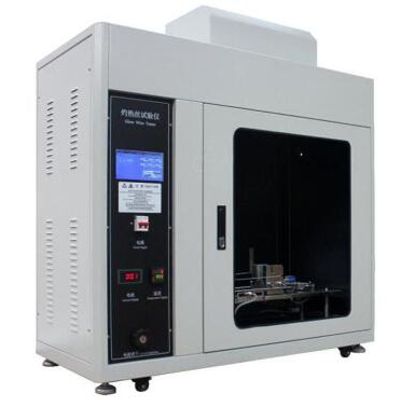

QINSUN - Model IEC60695 and IEC335 -Glow Wire Testing Machine

1. Temperature range: 500～1000℃, digital display adjustable,
2. Temperature error: ±10°C (500～750°C); ±15°C (750～1000°C) accuracy of temperature measuring instrument is ±0.5 grade.
3. Temperature sensor: Φ0.5K armored thermocouple, imported thermocouple.
4. Apply pressure to the sample: 0.8N ~ 1.2N, and limit the indentation depth to at least 7mm.
5. The timing time is automatically set and displayed on the touch screen.
6. The program automatically records the burning time, light-off time and test burning time.
7. Time error: ±0.1s.
8. Ignition bedding layer: 10mm thick white pine board, covered with 12g/m2~30g/m2 standard silk paper, 200mm±5mm below the glow wire
9. The instrument is easy to operate, and the temperature measurement system is stable and reliable.
10. There is an operator hole at the lower part of the visual observation window of the equipment, which is easy to operate.

QINSUN INSTRUMENT Glow Wire Testing Machine adopts the integrated design of the test box part and the control part, which is convenient for on-site installation and debugging. The important parts are made of stainless steel, which is resistant to smoke and gas corrosion; the constant current source is used for current regulation to achieve the purpose of precise temperature control; the time and temperature are digitally displayed, easy to observe and record, and stable and reliable to use.

ps: (WLJCDM809)
