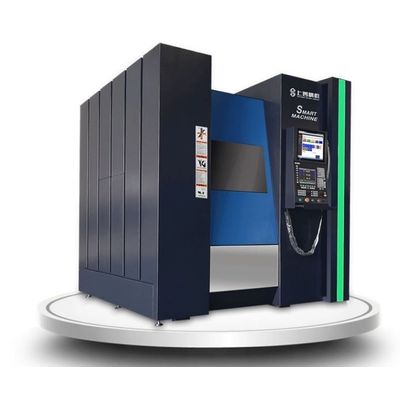

Shangshan - Model S-500NCM -Graphite CNC Lathe Machine

Product features:

• Designed specifically for graphite processing.
• Fully closed-loop control to ensure accuracy.
• Fully sealed protection to protect machine tool components.
• Customizable to your needs.

Processable materials:

• graphite, carbon fiber, ceramics, composites, and other non-metallic materials.

S-500NCM Parameters: Value

• Max. Rotation Dia: Φ530mm
• Max. Turning Dia: Φ460mm
• Max. Dia Machining On The Tool Holder: Φ280mm
• Max. Turning Length: 500mm
• Spindle Through Hole Dia: Φ66
• Bar Capacity: Φ52
• Spindle Head Type: A2-6
• Max. Spindle Speed: 3500rpm
• X/Z Axis Travel: 270×500mm
• X/Z Rapid Speed: 24m/min
• Positioning Accuracy: ±0.008/300mm
• Repeatability: ±0.005/300mm
• Turret Type: 12T Servo Turret
• External Diameter Tool Holder: 25×25mm
• Dia. Of Tailstock Sleeve: Φ80mm
• Travel Of Tailstock Sleeve: 80mm
• Taper Hole Of Tailstock Sleeve: Morse 5#
• Machine Size: 2650×1950×1800mm
• Machine Weight: 3700Kg
• Warranty Period: 12 Months
