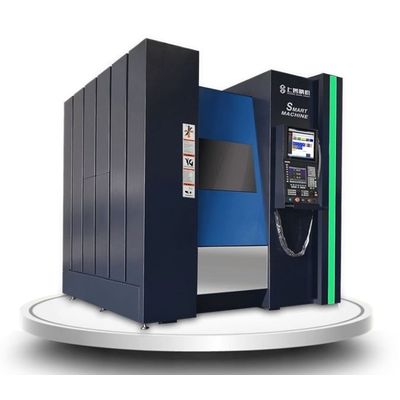

Shangshan - Model S-640V -Graphite CNC Machine

Product features:

• Designed specifically for graphite processing.
• Fully closed-loop control to ensure accuracy.
• Fully sealed protection to protect machine tool components.
• Customizable to your needs.

Processable materials:

• graphite, carbon fiber, ceramics, composites, and other non-metallic materials.

S-640V Parameters : Value

• X/Y/Z Travel : 600×400×420mm
• Table Dimensions : 700×400mm
• Max. Table Load : 300Kg
• Spindle Face to Worktable Height : 170—590mm
• Positioning Accuracy : ±0.005/300mm
• Repeatability : ±0.003/300mm
• Tool Capacity : 24
• Spindle Speed : 15000-40000Rpm
• Moving Speed : 32m-48m/min
• Cutting Speed : 10m-20m/min
• Tool Change Time : 2 seconds
• Dimensions (L/W/H) : 2350×2300×2650mm
• Weight : 4000Kg
• Control Method : Fully closed-loop control
