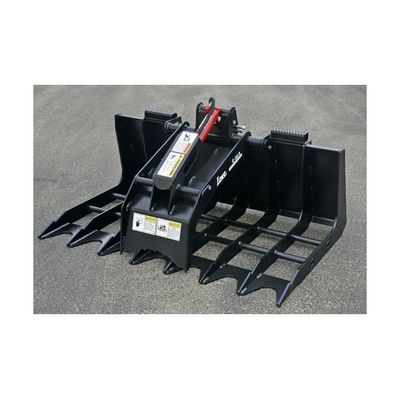

Lowe - Model G-56A Series -Grapple
The LOWE G-56A does the same kinds of jobs as the larger G-72A. It has all the features but is designed for smaller machinery. The G-56A saves considerable weight and cost by using only one hydraulic clamp. The compactness and maneuverability of the G-56A allow it to be operated where larger equipment cannot be used.
- Weight – 483 lbs. (219 Kg)
- Width – 56 inches (1,422 mm)
- Depth – 41 inches (1,041 mm)
- Max height (closed) – 30 inches (762 mm)
- Max height (open) – 41.75 inches (1,060 mm)
- Max opening gap – 40 inches (1,016 mm)
