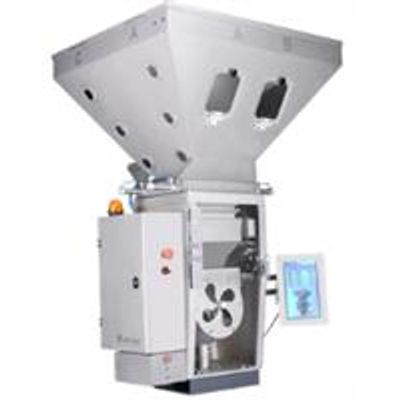

Walthmac - Model WBB series -Gravimetric Batch Blending System
Aiming to improve drastically production efficiency and quality and save costs for the customers, Walthmac WBB series/Gravimetric Batch Blending System automatically makes precise dosing and blending for multiple components by replacing conventional manual and some other lower-efficiency process. Walthmac is taking the lead of the industry in terms of not only accuracy error of dosing and blending but the stability, WBB quality is undoubtably exceed international industry standard.
According to gravimetric principle, material adding quantity is set based on the proportion of each component. Precision error can be inspected and controlled by the program. Self-adapting algotithm is adopted to guarantee the feeding accuracy.accuracy.
- Plastics film/cable/pipe/production of raw material/plastics modification and Chemical Industry.
WBB-H Series
-
Modular design, detachable structure, free-tool maintenance, easy operation;
-
Max Components: 12, Maximum throughput: 2600KG/H;
-
Multiple dosing modes are applicable for varied applications and to guarantee accurate proportion;
-
10”true color of touch screen with multi-language choices, dynamic and colorful diagram display;
-
Adopting advanced self-adaptation control algorithm, error self-correcting to each single batch, dosing precision can be optimized even under vibration based on unique anti-vibrating structure and algorithm;
-
USB access and Ethernet port, support MODBUS-TCP and remote data transmission and update;
-
Imported energy conservation motor;
-
Alarm will caution for record handling and output;
-
Made of stainless steel 316, Surface treatment: sand blasting;
-
Weighing and stirring are visible, simple and direct;
-
Minimum precision error: <0.1%(varied from material and component);
-
Metler-Toledo or HBM load cell with high precision;
-
Resolution of weigh signal is as high as 4,000,000:1;
-
Remote control function (option);
-
Grading password control, alarm records and save function for max. 100 groups of formula saving;
-
Function of throughput statistics;
-
Installation on-line through the adaptor or off-line nearby the master machine through the platform.
