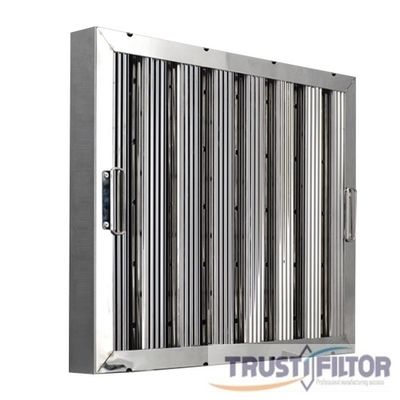

Zhongshan Spoiler-I Premium - Model 00107 -Grease Filter

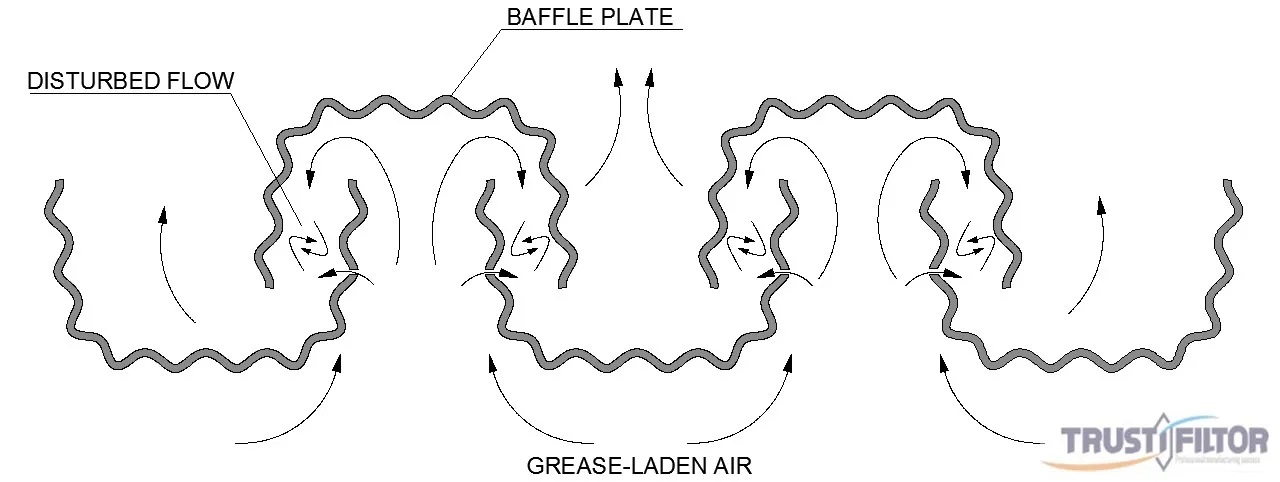

The high efficiency grease filter in our Spoiler series are mainly used in commercial kitchen hood and ventilation system to remove grease from air, with the function of fire proof under the UL 1046 requirement , also as the first fire barrier in the rang hood system .The unique design of spoiler holes and curved waves effectively increases not only the frequency of impact between the oil fume and the filter surface, but also energy consumption be reduced.
- Item No.: 00107
- Brand name: trustifiltor
- Efficiency:intercepts 85-90% large oil droplets while air flow speed at 1m/s.
- Construction: baffle filter
- Origin: Guangdong, China (mainland)
- Certificate: UL 1046
- After-sales service system: No Overseas third-party support
- Fire proof under the UL1046 requirement.
- Cut proof edge safety designed.
- Fully stainless steel and welded construction.
- Folding handles and drain holes as standard.
- Robust baffle filter construction-built to last.

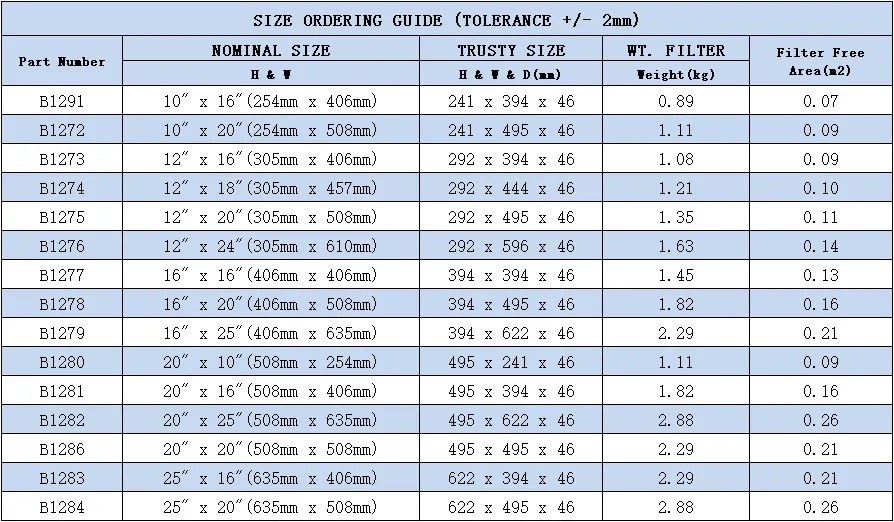

TRUSTIFILTOR Baffle Filter Type1-495×495×46mm And Type2-495×254×46mm
Trustifiltor specifies the dimension of baffle filter as height x width x thickness.The handles are always fixed to sides of "height" and drain holes are always on the sides of "width". The thickness is always 46mm(the standard size) ( more details refer the Baffle Filter List)
- Commercial kitchens
- Flame arresters
- Water mist separation
- Grease filtration
- TF`s Standard
- UL 1046 requirement
