BENE - Model Lipon -Grease Separator System

Separation of organic oils and grease in order to reduce the pressure on the sewer drain or body of water.

For commercial and industrial food production companies, in particular meat, fish and vegetable oil processors, as well as for guesthouses, hotels, grill kitchens, etc.

Organic oils and grease, liquid and solid, can be separated by the BENE LIPON. Please note, however, that the required separator power can only be reached when the temperatures are low enough. For this reason, the pipe length up to the grease separator needs to be long enough, usually 15 metres.

The biggest problem with grease separators is the strong smell (bacterial putrefaction). For this reason, the most important aim is often the prevention of unpleasant odours

BENE grease separator machines have particular advantages. Strong unpleasant odours do not develop with these systems as they are fully sealed.

Corresponding equipment makes sure that a disposal vehicle connects up outside the building and the system can execute disposal without having to be opened.

Benefits of Lipon 2000 and Lipon 3000:

• prevention of odour and hygiene problems
• automatic control of disposal, internal cleaning and system restart
• ideal transport and assembly conditions thanks to minimum weight and dimensions
• factory-side pre-assembled system with connections for standard pipe materials
• disposal without interruption to the production/workflow
• the best cleaning results thanks to powerful internal cleaning jet

BENE grease separators integrate sludge collection, grease separation and, if required, sampling, in a single compact container. In accordance with DIN 4040-100 / EN 1825.

Separation efficiency

In accordance with DIN 4040 / EN 1825, separation efficiency of at least 92% is required.

At 95-99.5%, the figures of BENE technology are considerably better..

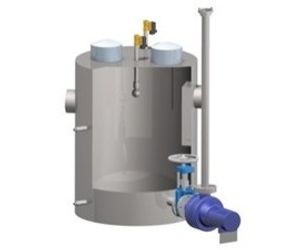

Grease separators and sludge collection, free-standing or in shaft constructions, with automatic disposal and internal cleaning

• Integrated sludge collection

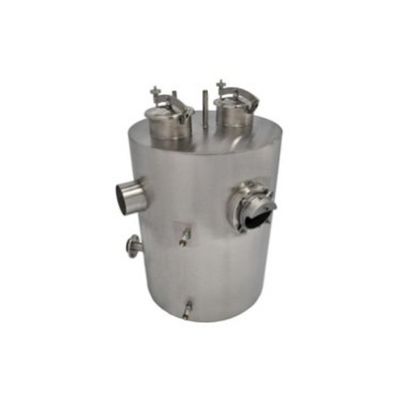

• Stainless steel containers
• Internal cleaning system with 360° cleaning jet
• Disposal pump for automatic disposal of grease and sludge
• The entire process of emptying, cleaning and refilling is executed fully automatically.

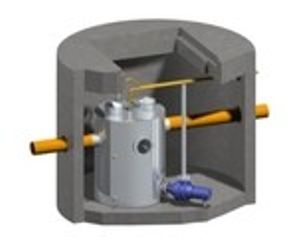

Advantages of BENE LIPON U (underground, outside buildings)

Corresponding civil engineering measures are required with installing grease separators outside buildings.

Advantage:

• no space requirements in the building
• low system costs

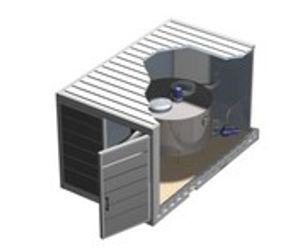

Advantages of BENE LIPON F (freestanding assembly in buildings)

Advantage:

• especially compact size
• can be transported through existing doors to the position of assembly
• stainless steel

LIPON 100

without disposal connection (manual suction with vacuum truck, cleaning, refilling)

LIPON 1000

with disposal connection (manual suction with vacuum truck, cleaning, refilling)

LIPON 2000

disposal equipment, disposal pump optional, internal cleaning, manual control

LIPON 3000

disposal equipment, disposal pump optional, internal cleaning, automatic control

The BENE DEMULGON or chemical separations systems can be added to the BENE LIPON for:

• particularly extreme inflows of pollutants
• particularly strong detergents
• particularly high levels of heat
• specific outflow requirements
