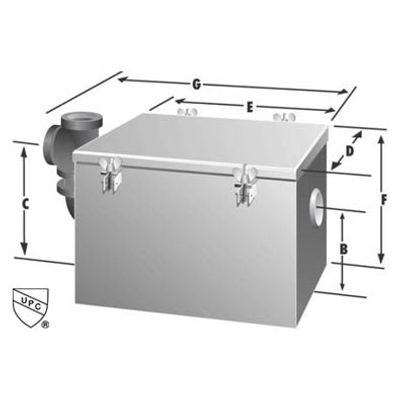

Model G Series -Grease Separators
Grease separators shall be Rockford Separators as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans. SPECIFICATIONS: Furnish ______Rockford Model G-______ all-welded steel separators for on-the-floor (or partially recessed) installation, ______ g.p.m. intermittent flow, ______” tapped inletand outlet with outlet vent connection, ______ lb. greasy sludge capacity, visible double-wall outside trapseal, non-removable separator screen with easily removable filter screen, gasketed cover hand-tightened tobody with safety-catch bolt assemblies, enamel coating inside and outside.
Epoxy coating inside and outside. Sediment basket. Filter medium. All stainless steel construction.
6” Bolt On Extensions Available!
Our Stainless Steel units offer users a simple and economical solution to add an extension to units that are buried below ground. Our extension units are pre-fabricated in standard 6” increments so there’s no measuring or cutting required for installation. Because of the inherent strength of steel, our extension units are much more reliable at ground level, which is the primary location where damage can occur. The design also gives you 100% accessibility for cleaning and maintenance.
These are for on-the-floor or partially recessed installation.
* Also available with 2” inlet and outlet.
- Separators with filter medium can be furnished.
- Stainless steel also available.
- Draw-off valve available.
- Allow headroom for lifting out both screens to clean the separator.
