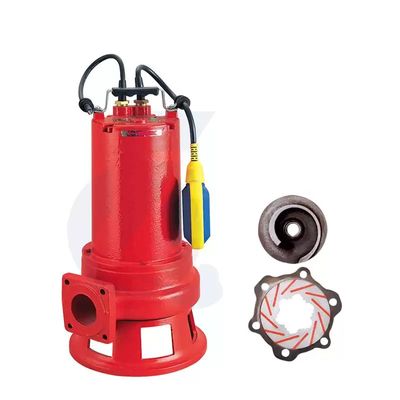

Model WQd-QG -Grinder Pumps
Applications: Cast iron casing submersible pumps with impeller provided with grinding device. Designed for waste water with solid organic materials. The particular hydraulic shape, allowing the grinding of destroyable solid corps into very small parts, enables to pump waste waters even in those places where a sewer system is not available. Suitable to lift dirty water and empty cesspits.
Most popular related searches
grinder pump
submersible grinder pump
cast iron submersible pump
cast iron submersible pumps
submersible pump
submersible grinder
sewer system
float switch
impeller pump
shredding power
- Power Cable: Standard cord is 10m
- Liquid Temperature: 104°F(40?) continuous
- Motor: B insulation class, IP68 protection
- Single Phase: Built in thermal protector
- Accessories: Float switch is available
- O-ring: Buna-N
- Motor Housing: GG20
- Shaft: AISI 420
- Double-sided Mechanical Seal: Buna-N elastomers
- Motor side: Carbon VS Silicon Carbide
- Pump side: Silicon Carbide VS Silicon Carbide
- Impeller: ZG35
- Pump Casing: GG20
- Shredding ring:ZG35
