Fontana R, s. r. o.

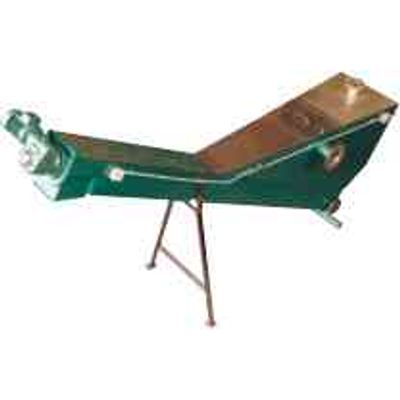

Model SP -Grit Separators
The grit separator is one of the devices designed for coarse pre-treatment in waste water treatment plants, where it separates grit from sediment caught in grit chambers.
Most popular related searches
grit separator
grit separation
wastewater treatment plant
water treatment plant
wastewater treatment
wash water
waste treatment plant
grit chamber
water treatment
waste treatment
- Capacity: Q 5, 10, 15 l.s-1 of hydro-mixture
- Efficiency of grit separation from organic material: (grit grains > 0.2 mm) * up to 95%
- Consumption of wash water: (only for demand) 0÷3 l.s-1 at 0.3 MPa
- Diameter of conveyor screw: øD 250 mm
- Power input of conveyor screw: 0.55 kW / 400 V / 50 Hz
- Power input of electromagnetic valve: (only for demand) 60 VA, 230 V / 50 Hz
Operating conditions:
- indoor
- outdoor for temperatures ranging from -20 to +50 °C with heating unit of 1.54 kW / 220 V / 50 Hz
