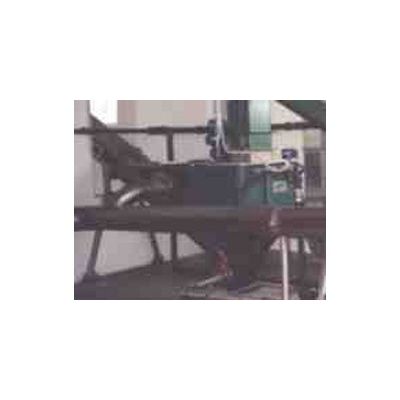

Model PP -Grit Washers
The grit washer is designed for intensive grit washing and the removal of organic matters in grit. Grit washer is placed at a further stage after the grit separator. By intensive grit washing mostly all residual portion of organic substances are removed. The hydro-mixture in the grit chamber is first pumped into the grit separator. Here the initial rough separation of grit from the remaining solid phase is carried out. By subsequent washing the grit is rid of almost all the residual portion of organic substances.
Most popular related searches
grit washer
grit separator
grit separation
grit washing
wash water
grit chamber
screw conveyor
grit remover
grit removal
grit pump
- Capacity: Q up to 0.4 l.s-1 (=1.5 m3h-1) of washed grit
- Efficiency of grit separation from organic material: (grit grains > 0.2mm) 97 - 99 %
- Consumption of wash water: 3 ÷ 5 l.s-1 of wash water at 0.3 MPa
- Diameter of conveyor screw: øD 250 mm
- Power inputs: conveyor screw 0.55 kW / 400 V / 50 Hz, washing 1.5 kW / 400 V / 50 Hz, electromagnetic valve 60 VA, 230 V / 50 Hz
- Single cycle period: period of hydro-mixture pumping +, period of hydro-mixture pumping +
Operating conditions:
- a) indoor
- b) outdoor for temperatures ranging from -20 to +50 °C with heating unit of 1.54 to 2.0 kW / 220 V / 50 Hz
