Adequa - Ground Drainage PVC System

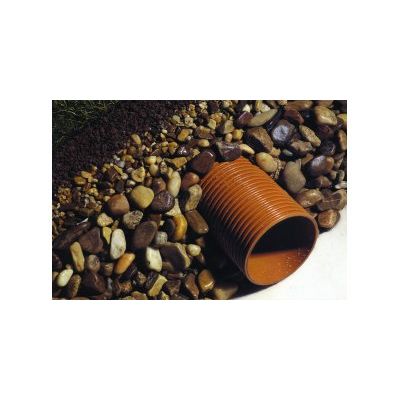

Double-walled circular corrugated grooved piping for shallow and deep buried (depths of over 4 m) drains. Drainage for transit routes (roads, railways, airport runways, etc.), walls and dams, tunnels, landfill sites, agriculture, reservoirs, buildings, sports facilities, etc.

Most popular related searches

double wall pipe

landfill site

double wall corrugated pipe

Principal benefits

Double-walled piping with great external load-bearing strength.
Smooth internal wall optimises the required diameter.
Resistant to the chemical attacks of aggressive ground conditions.
Wide range of diameters.

Range

DN 110 mm to DN 400 mm.
Double wall; smooth internal, corrugated external.
Rigidity ≥4 kN/m2 (SN4).
Total pipe length is 6 m.
Standard 220º grooving, optional 360º grooving for DN 110 to 200 mm, and 110º for DN 200 to 400 mm.
Grooving: Standard pipes supplied with grooves in the corrugation valleys.  • Colour: Orange.
Cup joint with elastic seal. The prices listed include the seal.
Special sealing lubricant must be used to make the joint between pipes, see Accessories.
FITTINGS: see smooth PVC parts in SANECOR corrugated PVC system.
