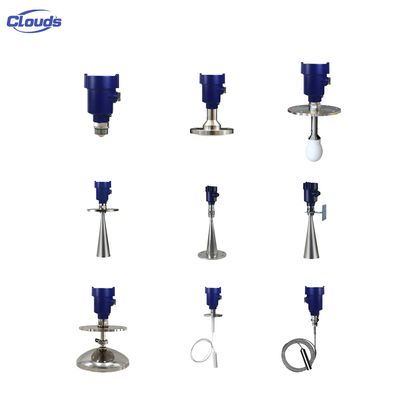

YUNYI - Model YLR80G -Guided Wave Radar Level Meter

FromXi`an Yunyi Instrument Co., Ltd.

SHARE

YLR80G 76-81 FMCW radar (also called millimeter wave radar) level meters, as it uses a millimeter wave band with a higher frequency than Ku band radar, long-distance imaging and multi-spectral imaging in remote target detection and strong smoke and dust environments, it can detect smaller targets than microwave radar and achieve more precise positioning, it has higher resolution and stronger confidentiality.It has a maximum measuring range of 120m and measuring accuracy of ±1mm, supporting 4-wire and 2-wire.

Most popular related searches

radar level meter

guided wave radar

spectral imaging

pipeline monitoring

wave guided radar

wave monitoring

hosting software

Features:

5GHz ultra-large FM scanning frequency width, wide application,

Support standard HART, RS485/MODBUS bus protocol,

Support host computer setting software, tank side meter, etc. operation modes

24Vdc power supply

Simple installation structure

Applications:

The electromagnetic wave emission angle of the product is less than 3°, which is suitablefor

narrow space or guided wave pipeline measurement;

It can reach a measurement range of 120m, suitable for the measurement of large storage tanks;

The measurement blind area is in the range of 7-8CM, suitable for small storage tanks;

The measurement accuracy is suitable for high-precision measurement;

It has a wealth of echo processing algorithms and data of various working conditions; it has

unique advantages in storage tank applications that challenge other similar products in

extremely harsh working conditions such as strong dust, steam, or special process storage

tanks with stirring and heating rods.
