Gunite Machine

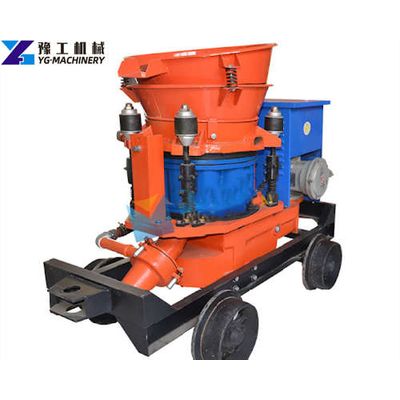

Gunite machine is a kind of high-efficiency concrete spraying machine. Also called shotcrete machine. The cement slurry pumped by the mud pump is mixed with the sand and gravel sprayed by the gunite equipment and the accelerator is mixed in the mixer. And then, the mixture is sent to the spray gun by the conveying pipe for spraying. YG Machinery has a dry gunite sprayer for sale and wet gunite machine for sale. The wet gunite sprayer machine has one more pumping system (accelerator conveying system) than the dry gunite sprayer machine, with a small motor of 0.75KW. Concrete gunite machine is suitable for tunnels, high-speed railways, and highways. The wet gunite machine can spray dry or wet materials. And the dry concrete gunite machine can only spray dry materials. The following are the parameters of dry gunite machine and wet gunite machine. If you want to know gunite machine cost, please feel free to contact us.
Gunite machines are used in mines, tunnels, culverts, subways, hydropower projects, pavement projects, underground projects, and coal mine tunnels.
1) Underground engineering: main support and lining of mine roadway, flexible tunnel, hydraulic tunnel, and various types of cavities (underground power station, underground warehouse).
2) Thin-walled structural engineering: thin-shell roof, construction of pre-stressed construction of reservoirs and storage tanks, etc.
3) Repair and reinforcement work: bridge, seawall, chimney, cooling, bridge, dam, tunnel, wharf, building structure reinforcement, chemical corrosion, fire, earthquake, explosion impact, overload, or the most unfavorable factors of construction quality, such as repairing damaged structures.
4) In geotechnical engineering, slope, dam, tunnel, reservoir, swimming pool, deep foundation pit, irrigation, and breakwater with retaining wall.
5) Protection engineering: all kinds of fireproof coatings for steel structures.
6)Refractory materials project building chimneys and various hot melting furnaces and repairs.
The structure of the concrete gunite machine is simple and reasonable and easy to operate. Humanized design and reliable performance. Meanwhile, low gunite machine cost, convenient operation and maintenance, and long service life. No dust, low noise, and low rebound rate when working. In addition, this concrete gunite sprayer machine greatly reduces the dust concentration near the machine and at the nozzle. Thereby, the working environment of workers is improved, and the pneumoconiosis caused by dust is reduced. Contact us now to get a free quote for your reference.
