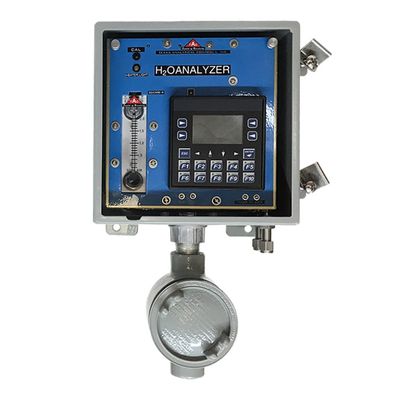

TAC - Model XLE 105-2 -H2O Online Process Analyzer

Easy to Operate and Maintain
The TAC analyzer outshines the competition when it comes to ease of operation and maintenance.

Sensors typically last 2 years and can be changed in just a few minutes.  No special tools are required.

Calibration is performed at the TAC factory prior to shipping.  Field calibration is not required.

Full Technical Support
You will find the analyzers are easy to maintain.  Technical support is available via phone or in person by one of our service technicians.

The display provides a Historical Trend of the H2O Readings for the previous hour

The display will read “Flow Fail.”  If the regulators and the flow meter(s) are not working properly and the sample line is obstructed.

The SD memory card is used to store Historical Calibration and Alarm Data.  Each analyzer has the ability to be given a Name or ID.  The selected ID name will also be displayed when downloading data from SD card to a spreadsheet.

Range: Customer to specify a range and can be field programmable to alarm at any desired set point. Typical ranges:

• H2O 0-10, 0-20 LBS (other ranges available)

Detection Method: H2O- Thermoset Polymer Sensor (Estimated life: 2 Years)

Calibration: Field Calibration is not required

Communications Output: 4-20 mA (Self Powered)
Modbus
(See Customization Tab for other options)

Sample Input Pressure: Inlet 10+/-2 PSIG

Response Time: Less then 60 Seconds

Instrument Accuracy: +/-5% of the Full Scale

Instrument Repeatability: +/- 2%

Current Draw: Less then 1 A

Operating Temperature: -20°C to 50°C; -40°F to 122°F

Dimensions: 6.3″ x 3.5″ x 2.4″
